FH12-34S-0.5SH(55) - Hirose

Description: Hirose FH12 Series 0.5mm Pitch 34 Way 1 Row Right Angle SMT Female FPC Connector, Gold Plated Contacts

Download FH12-34S-0.5SH(55) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

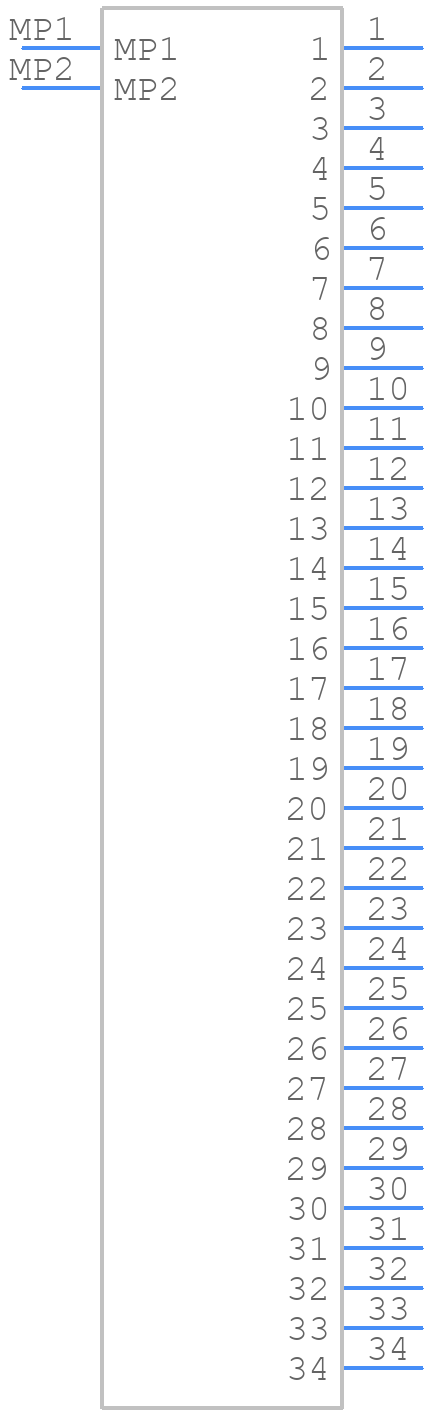

FH12-34S-0.5SH(55) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH12-34S-0.5SH(55) - Hirose PCB footprint - Other - Other - FH12-34S-0.5SH(55)-1
click to zoom
3D Models
FH12-34S-0.5SH(55) - Hirose - 3D model - Other - FH12-34S-0.5SH(55)-1
click to zoom

FH12-34S-0.5SH(55) Details

  • Manufacturer Part Number:

    FH12-34S-0.5SH(55)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    FFC/FPC CONNECTOR

FH12-34S-0.5SH(55) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values for your application.
  • Yes, the FH12-34S-0.5SH(55) is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the datasheet and perform necessary testing to ensure the connector meets your specific application requirements.
  • The maximum operating temperature for the FH12-34S-0.5SH(55) is 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the FH12-34S-0.5SH(55) is designed to be used in harsh environments, including outdoors and high-humidity areas. However, it's recommended to consult the datasheet and perform necessary testing to ensure the connector meets your specific application requirements.
  • The mating cycle life of the FH12-34S-0.5SH(55) is 500 cycles. However, this may vary depending on the application and usage. It's recommended to consult the datasheet and perform necessary testing to ensure the connector meets your specific application requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH12-34S-0.5SH(55) Overview

Use the download button to access the FH12-34S-0.5SH(55) schematic symbol, PCB footprint, and 3D model.
