FH12-40S-0.5SVA(54) - Hirose

Description: Hirose FH12 0.5mm Pitch 40 Way SMT Female FPC Connector, ZIF Vertical Contact

Download FH12-40S-0.5SVA(54) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

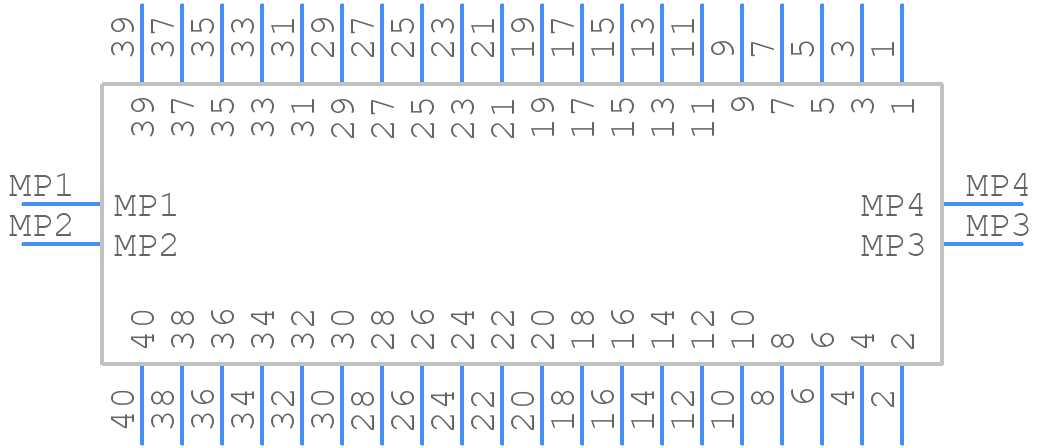

FH12-40S-0.5SVA(54) - Hirose - PCB symbol
click to zoom
PCB Footprints

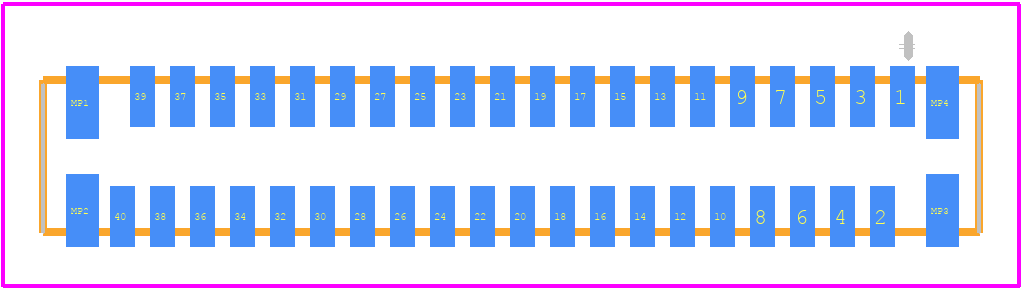

FH12-40S-0.5SVA(54) - Hirose PCB footprint - Other - Other - FH12-40S-0.5SVA(54)-2
click to zoom
3D Models
FH12-40S-0.5SVA(54) - Hirose - 3D model - Other - FH12-40S-0.5SVA(54)-2
click to zoom

FH12-40S-0.5SVA(54) Details

  • Manufacturer Part Number:

    FH12-40S-0.5SVA(54)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.96

  • Connector Type:

    FFC/FPC CONNECTOR

FH12-40S-0.5SVA(54) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in) for the screw locks.
  • Yes, the FH12-40S-0.5SVA(54) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific vibration requirements.
  • The operating temperature range for the FH12-40S-0.5SVA(54) is -40°C to 105°C (-40°F to 221°F).
  • The FH12-40S-0.5SVA(54) has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific outdoor use requirements.
  • The mating cycle life of the FH12-40S-0.5SVA(54) is 500 cycles minimum.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH12-40S-0.5SVA(54) Overview

Use the download button to access the FH12-40S-0.5SVA(54) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH12-, or try a keyword search, such as Headers and Edge Type Connectors
