FH12-8S-1SVA(54) footprint, schematic symbol and 3D model by Hirose

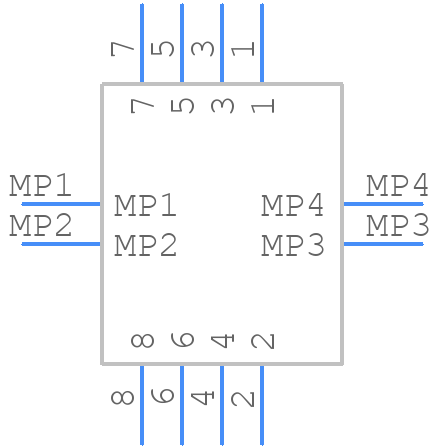

Symbol

click to zoom

PCB Footprints

FH12-8S-1SVA(54) - Hirose PCB footprint - Other - Other - FH12-8S-1SVA(54)-1

click to zoom

3D Models

FH12-8S-1SVA(54) - Hirose - 3D model - Other - FH12-8S-1SVA(54)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH12-8S-1SVA(54)
Part Number FH12-8S-1SVA(54)
Manufacturer Hirose
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - FH12-8S-1SVA(54)-1
Released Date Nov 6, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FH12-8S-1SVA(54) Details

Manufacturer Part Number:
FH12-8S-1SVA(54)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
Factory Lead Time:
26 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
7.5
Body Breadth:
0.167 inch
Body Depth:
0.217 inch
Body Length:
0.469 inch
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Resistance:
50 mΩ
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Dielectric Withstanding Voltage:
150VAC V
Durability:
20 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
500000000 Ω
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.039 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
0.5 A
Reference Standard:
UL
Terminal Pitch:
2 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
8
UL Flammability Code:
94V-0

FH12-8S-1SVA(54) Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.0 N·m. However, it's essential to consult the datasheet and manufacturer's guidelines for specific torque values, as they may vary depending on the application.
Yes, the FH12-8S-1SVA(54) is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity in high-vibration environments.
The operating temperature range for the FH12-8S-1SVA(54) is -40°C to 105°C. While it can withstand high temperatures, it's essential to consider the specific application's temperature requirements and potential thermal stress on the connector.
The recommended cable size is AWG 24 to AWG 30. It's essential to consult the datasheet and manufacturer's guidelines for specific cable size and type recommendations, as they may vary depending on the application.
The FH12-8S-1SVA(54) has a IP67 rating, making it suitable for use in harsh environments. However, it's crucial to ensure proper sealing and protection to maintain the connector's integrity in such conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

FH12-8S-1SVA(54) Overview

Use the download button to access the FH12-8S-1SVA(54) schematic symbol, PCB footprint, and 3D model.
