FH19C-10S-0.5SH(10) - Hirose

Description: HIROSE(HRS) - FH19C-10S-0.5SH(10) - CONN, FPC, RCPT, R/A, 10POS, 0.5MM, SMT

Download FH19C-10S-0.5SH(10) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

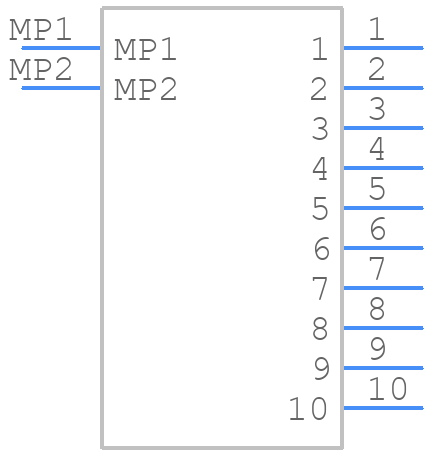

FH19C-10S-0.5SH(10) - Hirose - PCB symbol
click to zoom
PCB Footprints

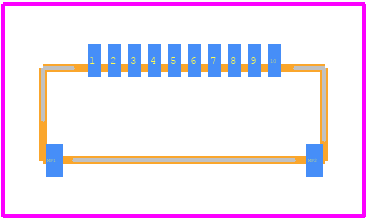

FH19C-10S-0.5SH(10) - Hirose PCB footprint - Other - Other - FH19C-10S-0.5SH(10)-1
click to zoom
3D Models
FH19C-10S-0.5SH(10) - Hirose - 3D model - Other - FH19C-10S-0.5SH(10)-1
click to zoom

FH19C-10S-0.5SH(10) Details

  • Manufacturer Part Number:

    FH19C-10S-0.5SH(10)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    5

  • Connector Type:

    FFC/FPC CONNECTOR

FH19C-10S-0.5SH(10) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for the most up-to-date information.
  • Yes, the FH19C-10S-0.5SH(10) is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and validation.
  • The operating temperature range for the FH19C-10S-0.5SH(10) is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
  • Yes, the FH19C-10S-0.5SH(10) is compatible with lead-free soldering processes. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific soldering profile recommendations.
  • The mating cycle rating for the FH19C-10S-0.5SH(10) is 500 cycles. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle testing and validation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH19C-10S-0.5SH(10) Overview

Use the download button to access the FH19C-10S-0.5SH(10) schematic symbol, PCB footprint, and 3D model.
