The recommended mating sequence for FH19C-24S-0.5SH(10) is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
Yes, the FH19C-24S-0.5SH(10) is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
The FH19C-24S-0.5SH(10) has an operating temperature range of -40°C to 105°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
The FH19C-24S-0.5SH(10) has a IP67 rating, which means it can withstand exposure to water and dust. However, it's essential to follow the recommended sealing and potting procedures to ensure reliable connections in harsh environments.
The recommended cable size for FH19C-24S-0.5SH(10) is 24 AWG to 30 AWG. It's essential to use a cable with a compatible insulation material and diameter to ensure reliable connections and prevent damage to the connector.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FH19C-24S-0.5SH(10) Overview

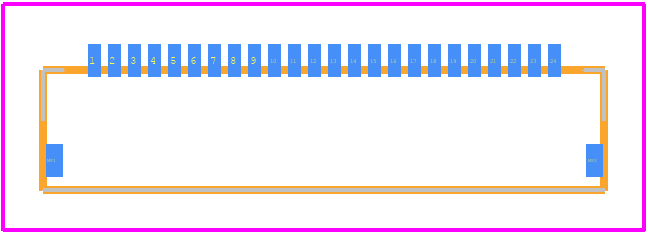

Use the download button to access the FH19C-24S-0.5SH(10) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH19C,
or try a keyword search, such as Headers and Edge Type Connectors
