- Part Number FH19C-30S-0.5SH(10)
- Manufacturer Hirose
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH19C-30S-0.5SH(10)-1
- Released Date Feb 5, 2020
- Last Modified Date Dec 9, 2024 4:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH19C-30S-0.5SH(10) Details
-
Manufacturer Part Number:
FH19C-30S-0.5SH(10)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
5.59
-
Connector Type:
FFC/FPC CONNECTOR
FH19C-30S-0.5SH(10) Frequently Asked Questions (FAQs)
-
The recommended mating sequence for FH19C-30S-0.5SH(10) is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
-
Yes, the FH19C-30S-0.5SH(10) is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and ensure proper mounting to prevent connector damage or disconnection.
-
The FH19C-30S-0.5SH(10) has an operating temperature range of -40°C to 105°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
-
The FH19C-30S-0.5SH(10) has a IP67 rating, which means it can withstand exposure to water and dust. However, it's essential to follow the recommended sealing and potting procedures to ensure the connector's integrity in harsh environments.
-
The recommended cable size for FH19C-30S-0.5SH(10) is 0.5mm² to 1.25mm². It's essential to use a cable with a compatible insulation material and diameter to ensure proper termination and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
FH19C-30S-0.5SH(10) Overview

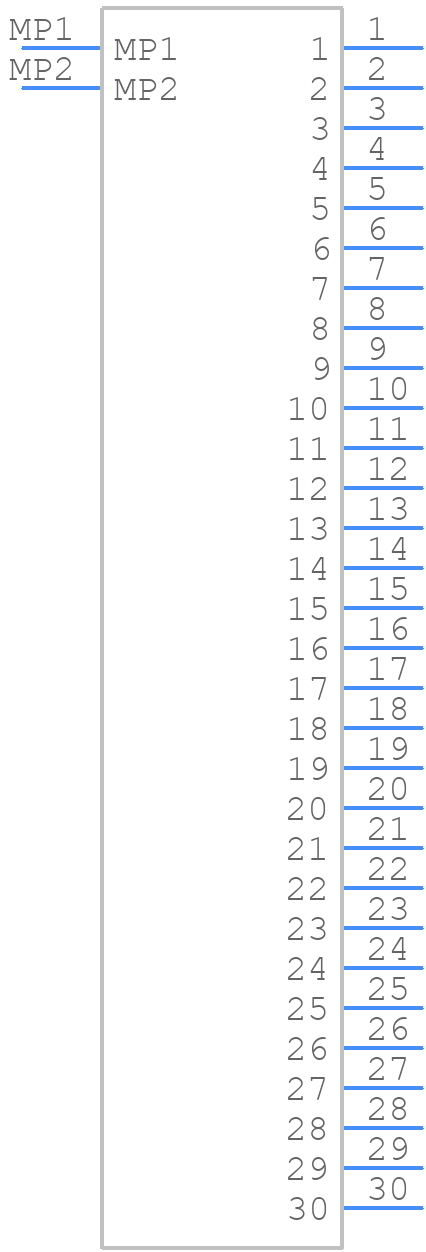

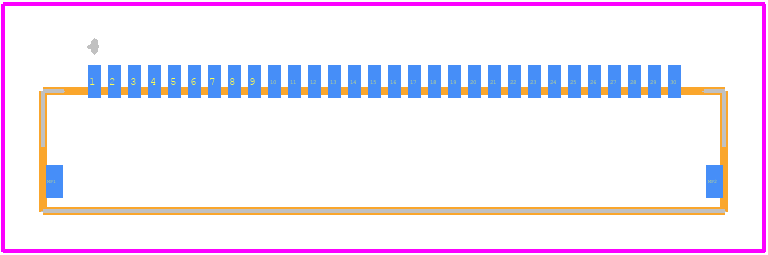

Use the download button to access the FH19C-30S-0.5SH(10) schematic symbol, PCB footprint, and 3D model.
