FH19C-40S-0.5SH(10) footprint, schematic symbol and 3D model by Hirose

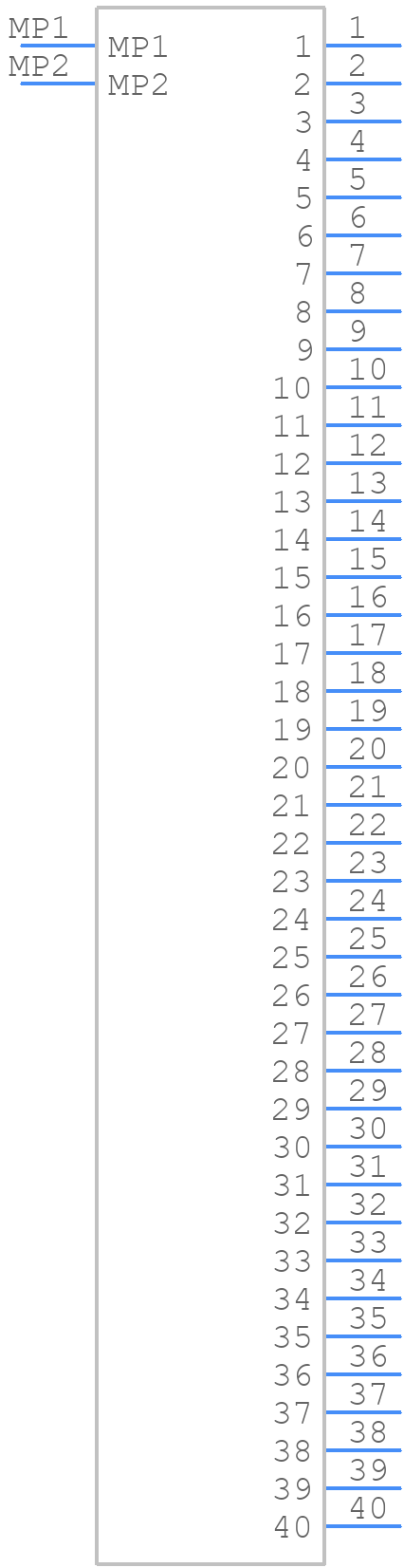

Symbol

click to zoom

PCB Footprints

FH19C-40S-0.5SH(10) - Hirose PCB footprint - Other - Other - FH19C-40S-0.5SH(10)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH19C-40S-0.5SH(10)
Part Number FH19C-40S-0.5SH(10)
Manufacturer Hirose
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - FH19C-40S-0.5SH(10)-2
Released Date Dec 11, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FH19C-40S-0.5SH(10) Details

Manufacturer Part Number:
FH19C-40S-0.5SH(10)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Connector Type:
FFC/FPC CONNECTOR

FH19C-40S-0.5SH(10) Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. It's essential to follow this range to ensure secure connection and prevent damage to the connector.
Yes, the FH19C-40S-0.5SH(10) is designed to withstand vibrations up to 10G (10-2000Hz) according to IEC 60512-11-4. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.
The operating temperature range for the FH19C-40S-0.5SH(10) is -40°C to 105°C. It's essential to ensure the connector is used within this range to maintain its performance and reliability.
The FH19C-40S-0.5SH(10) has a IP67 rating, which means it can withstand immersion in water up to 1m for 30 minutes. However, it's not designed for exposure to harsh chemicals. If you need to use the connector in a chemically harsh environment, consult with Hirose Electric Co Ltd or a qualified engineer to determine the best solution.
The mating cycle life of the FH19C-40S-0.5SH(10) is 500 cycles. This means the connector can withstand 500 mating and unmating cycles without significant degradation in performance.

Trust Checks

Community Provided

System Verified

Community Approved

FH19C-40S-0.5SH(10) Overview

Use the download button to access the FH19C-40S-0.5SH(10) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FH19C, or try a keyword search, such as Headers and Edge Type Connectors
