FH19C-40S-0.5SH(99) - Hirose

Description: FFC & FPC Connectors 40P SMT HORIZONTAL .5MM PITCH

Download FH19C-40S-0.5SH(99) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

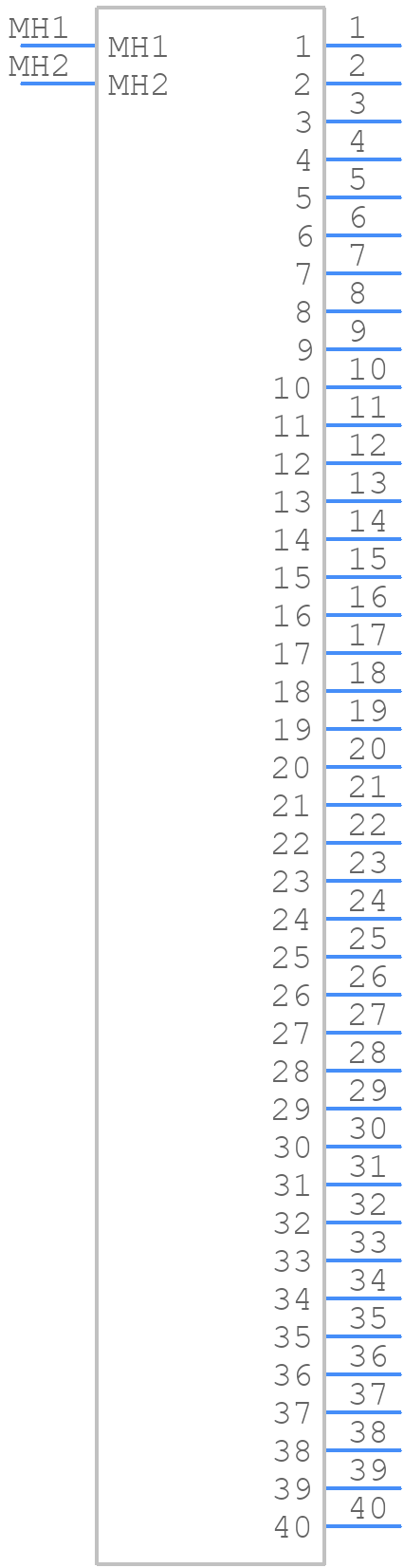

Symbol
FH19C-40S-0.5SH(99) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH19C-40S-0.5SH(99) - Hirose PCB footprint - Other - Other - FH19C-40S-0.5SH(99)-1
click to zoom
3D Models
FH19C-40S-0.5SH(99) - Hirose - 3D model - Other - FH19C-40S-0.5SH(99)-1
click to zoom

FH19C-40S-0.5SH(99) Details

  • Manufacturer Part Number:

    FH19C-40S-0.5SH(99)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.035 inch

  • Body Depth:

    0.138 inch

  • Body Length:

    0.866 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    150VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

FH19C-40S-0.5SH(99) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the FH19C-40S-0.5SH(99) is designed to withstand vibrations and is suitable for use in harsh environments. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The operating temperature range for the FH19C-40S-0.5SH(99) is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the FH19C-40S-0.5SH(99) is designed to be resistant to moisture and humidity. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the FH19C-40S-0.5SH(99) is 500 cycles minimum. However, it's recommended to consult the datasheet for specific information on mating cycle life and testing conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH19C-40S-0.5SH(99) Overview

Use the download button to access the FH19C-40S-0.5SH(99) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH19C, or try a keyword search, such as Headers and Edge Type Connectors
