FH19SC-16S-0.5SH(05) - Hirose

Description: CONN FFC BOTTOM 16POS 0.50MM R/A

Download FH19SC-16S-0.5SH(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

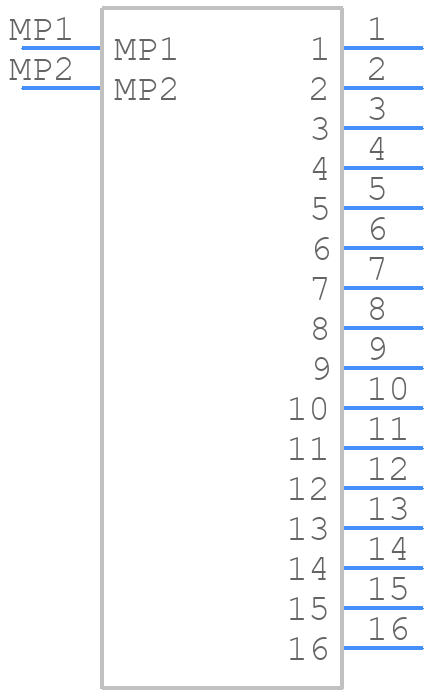

Symbol
FH19SC-16S-0.5SH(05) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH19SC-16S-0.5SH(05) - Hirose PCB footprint - Other - Other - FH19SC-16S-0.5SH(05)-1
click to zoom
3D Models
FH19SC-16S-0.5SH(05) - Hirose - 3D model - Other - FH19SC-16S-0.5SH(05)-1
click to zoom

FH19SC-16S-0.5SH(05) Details

  • Manufacturer Part Number:

    FH19SC-16S-0.5SH(05)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HALOGEN FREE

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ZIF, LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

FH19SC-16S-0.5SH(05) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the FH19SC-16S-0.5SH(05) is designed to withstand vibrations up to 10 G (10-2000 Hz) and shocks up to 100 G (11 ms), making it suitable for use in high-vibration environments.
  • Yes, the FH19SC-16S-0.5SH(05) has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • The maximum operating temperature range for the FH19SC-16S-0.5SH(05) is -40°C to 105°C, as specified in the datasheet.
  • Yes, the FH19SC-16S-0.5SH(05) is designed to accommodate cables with gauges ranging from AWG24 to AWG30, but it's recommended to consult the datasheet and application notes for specific cable requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH19SC-16S-0.5SH(05) Overview

Use the download button to access the FH19SC-16S-0.5SH(05) schematic symbol, PCB footprint, and 3D model.
