- Part Number FH19SC-24S-0.5SH(09)
- Manufacturer Hirose
- Pin Count 26
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH19SC-24S-0.5SH(09)-1
- Released Date Feb 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH19SC-24S-0.5SH(09) Details
-
Manufacturer Part Number:
FH19SC-24S-0.5SH(09)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
3
-
Connector Type:
FFC/FPC CONNECTOR
FH19SC-24S-0.5SH(09) Frequently Asked Questions (FAQs)
-
The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. It's essential to follow the recommended torque to ensure secure connection and prevent damage to the connector.
-
Yes, the FH19SC-24S-0.5SH(09) is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and screw locking to prevent connector damage or disconnection.
-
The FH19SC-24S-0.5SH(09) has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
-
The FH19SC-24S-0.5SH(09) has an operating temperature range of -40°C to 105°C. It's essential to ensure the connector is used within this temperature range to ensure reliable operation.
-
The FH19SC-24S-0.5SH(09) is designed for use with 24 AWG wire. While it may be possible to use a different wire gauge, it's essential to ensure the wire meets the connector's specifications and is properly terminated to prevent damage or electrical issues.
Trust Checks
Expert Contribution
System Verified
Community Approved
FH19SC-24S-0.5SH(09) Overview

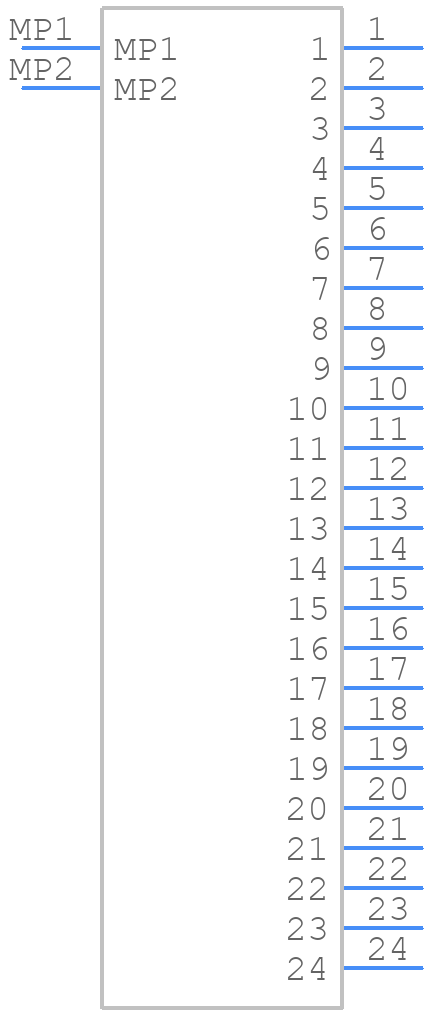

Use the download button to access the FH19SC-24S-0.5SH(09) schematic symbol, PCB footprint, and 3D model.
