FH19SC-32S-0.5SH(05) - Hirose

Description: HIROSE(HRS) - FH19SC-32S-0.5SH(05) - CONNECTOR, FFC/FPC, RCPT, 32POS, 1ROW

Download FH19SC-32S-0.5SH(05) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

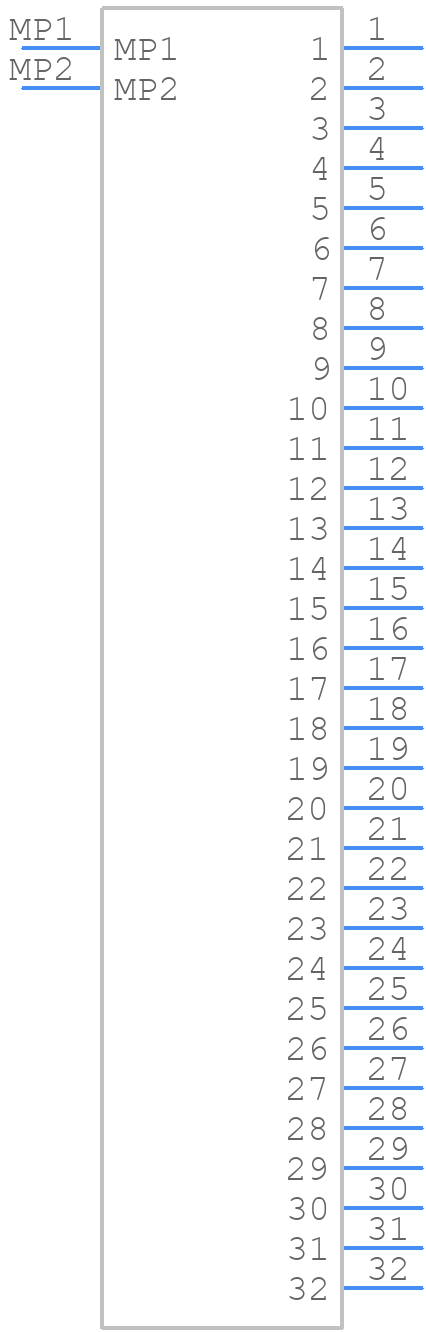

FH19SC-32S-0.5SH(05) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH19SC-32S-0.5SH(05) - Hirose PCB footprint - Other - Other - FH19SC-32S-0.5SH(05)-3
click to zoom
3D Models
FH19SC-32S-0.5SH(05) - Hirose - 3D model - Other - FH19SC-32S-0.5SH(05)-3
click to zoom

FH19SC-32S-0.5SH(05) Details

  • Manufacturer Part Number:

    FH19SC-32S-0.5SH(05)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HALOGEN FREE

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ZIF, LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0
