The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the FH19SC-32S-0.5SH(09) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
Yes, the FH19SC-32S-0.5SH(09) is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.
The maximum operating temperature for the FH19SC-32S-0.5SH(09) is 125°C, as specified in the datasheet. However, it's recommended to derate the operating temperature to 100°C for long-term reliability.
While the FH19SC-32S-0.5SH(09) has a rugged design, it's not recommended for use in harsh environments with exposure to saltwater or chemicals without proper protection, such as conformal coating or sealing. Consult with Hirose Electric Co Ltd or a qualified engineer for specific guidance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FH19SC-32S-0.5SH(09) Overview

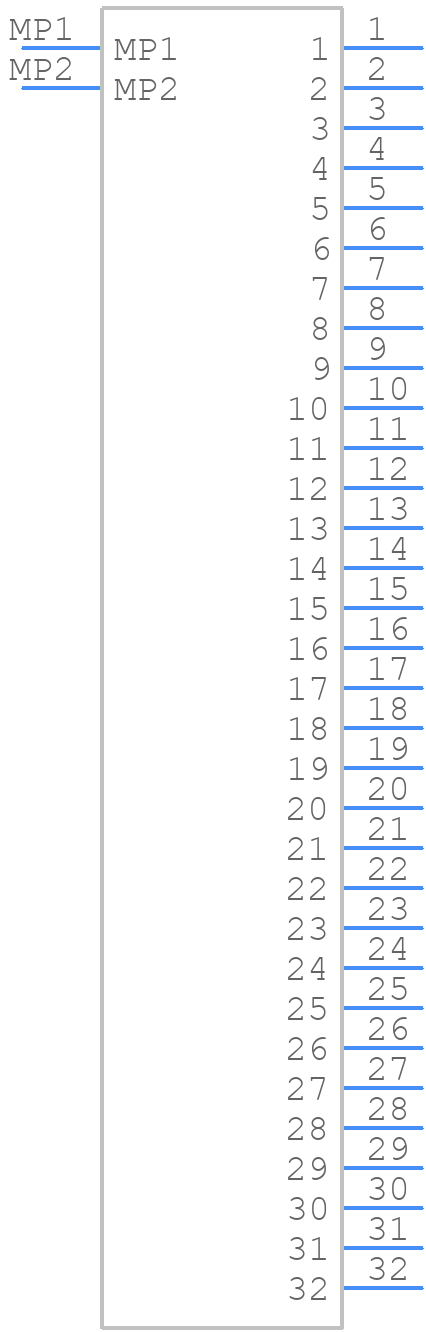

Use the download button to access the FH19SC-32S-0.5SH(09) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH19S,
or try a keyword search, such as Headers and Edge Type Connectors
