The recommended torque for the screw locks is 0.5 N·m to 1.0 N·m. It's essential to follow this torque specification to ensure secure connections and prevent damage to the connector.
Yes, the FH19SC-40S-0.5SH(09) is designed to withstand vibrations up to 10 G (10-2000 Hz) according to IEC 60512-11-4. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The FH19SC-40S-0.5SH(09) has an operating temperature range of -40°C to 105°C and can withstand humidity up to 90% RH. However, it's essential to consult the datasheet and Hirose Electric Co Ltd's recommendations for specific environmental conditions to ensure the connector's reliability and performance.
The FH19SC-40S-0.5SH(09) has a mating cycle life of 500 cycles minimum. This means the connector can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.
It's recommended to use the cables specified by Hirose Electric Co Ltd to ensure optimal performance and reliability. Using cables with different dimensions, materials, or shielding may affect the connector's performance, and it's essential to consult with Hirose Electric Co Ltd or a qualified engineer to determine compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH19SC-40S-0.5SH(09) Overview

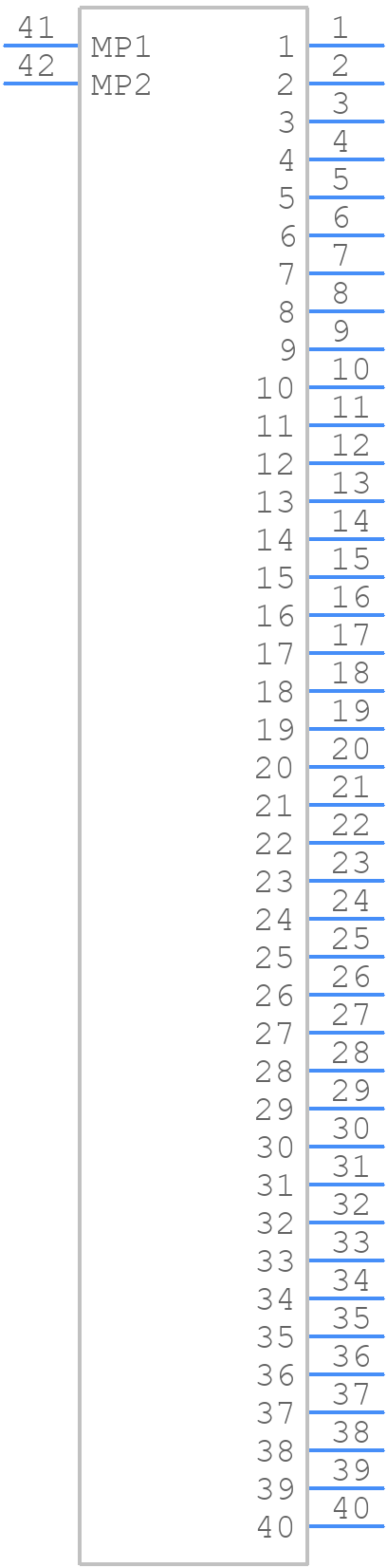

Use the download button to access the FH19SC-40S-0.5SH(09) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FH19S,
or try a keyword search, such as Headers and Edge Type Connectors
