FH28-40S-0.5SH(07) - Hirose

Description: FFC & FPC Connectors 40P SMT HORIZ ZIF AU 2.5MM HT .5MM PITCH

Download FH28-40S-0.5SH(07) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

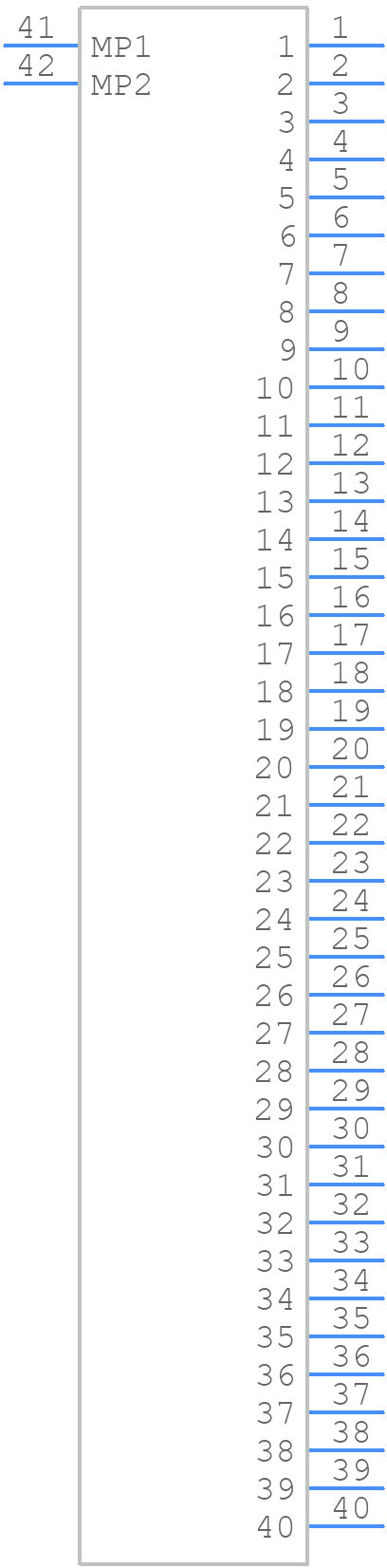

FH28-40S-0.5SH(07) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH28-40S-0.5SH(07) - Hirose PCB footprint - Other - Other - FH28-40S-0.5SH(07)-3
click to zoom
3D Models
FH28-40S-0.5SH(07) - Hirose - 3D model - Other - FH28-40S-0.5SH(07)-3
click to zoom

FH28-40S-0.5SH(07) Details

  • Manufacturer Part Number:

    FH28-40S-0.5SH(07)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    6.7

  • Connector Type:

    FFC/FPC CONNECTOR

FH28-40S-0.5SH(07) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for FH28-40S-0.5SH(07) connectors is 500 cycles.
  • Yes, FH28-40S-0.5SH(07) connectors are designed to withstand high-vibration environments and are suitable for use in applications with vibration levels up to 10G.
  • The operating temperature range for FH28-40S-0.5SH(07) connectors is -40°C to 105°C.
  • Yes, FH28-40S-0.5SH(07) connectors are compatible with lead-free soldering processes and can withstand the higher temperatures required for lead-free soldering.
  • The MSL rating for FH28-40S-0.5SH(07) connectors is MSL 1, which means they can be exposed to a maximum of 30°C and 60% relative humidity for 168 hours.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH28-40S-0.5SH(07) Overview

Use the download button to access the FH28-40S-0.5SH(07) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH28-, or try a keyword search, such as Headers and Edge Type Connectors
