FH28K-15S-0.5SH - Hirose

Description: 15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle ,50V , 0.5A , -40°C ~ 125°C

Download FH28K-15S-0.5SH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

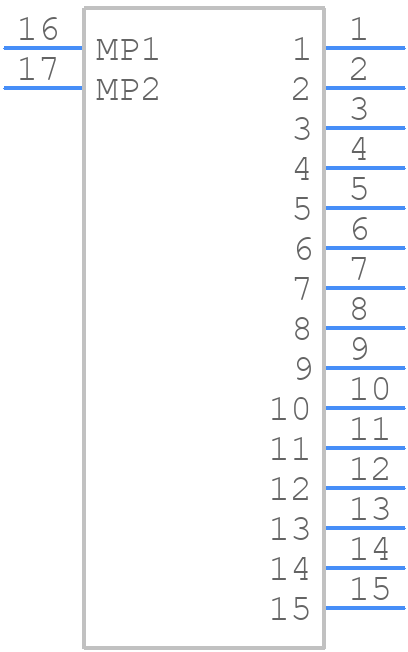

FH28K-15S-0.5SH - Hirose - PCB symbol
click to zoom
PCB Footprints
FH28K-15S-0.5SH - Hirose PCB footprint - Other - Other - FH28K-15S-0.5SH-2
click to zoom
3D Models
FH28K-15S-0.5SH - Hirose - 3D model - Other - FH28K-15S-0.5SH-2
click to zoom

FH28K-15S-0.5SH Details

  • Manufacturer Part Number:

    FH28K-15S-0.5SH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7

  • Connector Type:

    FFC/FPC CONNECTOR
