FH33-30S-0.5SH - Hirose

Description: FFC & FPC Connectors FPC/FFC ZIF CONN 30 CONT SMT HORZ MNT

Download FH33-30S-0.5SH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

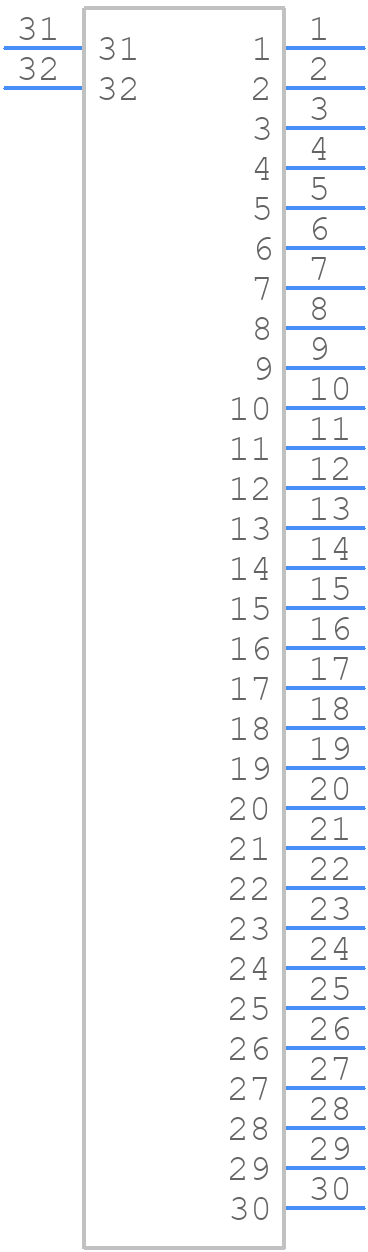

FH33-30S-0.5SH - Hirose - PCB symbol
click to zoom
PCB Footprints
FH33-30S-0.5SH - Hirose PCB footprint - Other - Other - FH33-30S-0.5SH-2
click to zoom
3D Models
FH33-30S-0.5SH - Hirose - 3D model - Other - FH33-30S-0.5SH-2
click to zoom

FH33-30S-0.5SH Details

  • Manufacturer Part Number:

    FH33-30S-0.5SH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    ZIF, LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0
