- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FH33-45S-0.5SH(99)
- Part Number FH33-45S-0.5SH(99)
- Manufacturer Hirose
- Pin Count 47
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH33-45S-0.5SH(99)-2
- Released Date Jan 29, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH33-45S-0.5SH(99) Details
-
Manufacturer Part Number:
FH33-45S-0.5SH(99)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
35 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
7.24
-
Connector Type:
FFC/FPC CONNECTOR
FH33-45S-0.5SH(99) Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the Hirose application notes for specific guidance.
-
Yes, the FH33-45S-0.5SH(99) is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to consult with Hirose or a qualified engineer to ensure proper implementation.
-
The maximum operating temperature for the FH33-45S-0.5SH(99) is 125°C, but it's recommended to consult the datasheet and application notes for specific temperature ratings and derating guidelines.
-
The FH33-45S-0.5SH(99) is designed to be resistant to harsh environments, but it's recommended to consult with Hirose or a qualified engineer to ensure proper sealing and protection methods are implemented.
-
The recommended wire size is AWG 24 to AWG 30, and the recommended wire type is a stranded, tin-plated copper wire. However, it's recommended to consult the datasheet and application notes for specific guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
FH33-45S-0.5SH(99) Overview

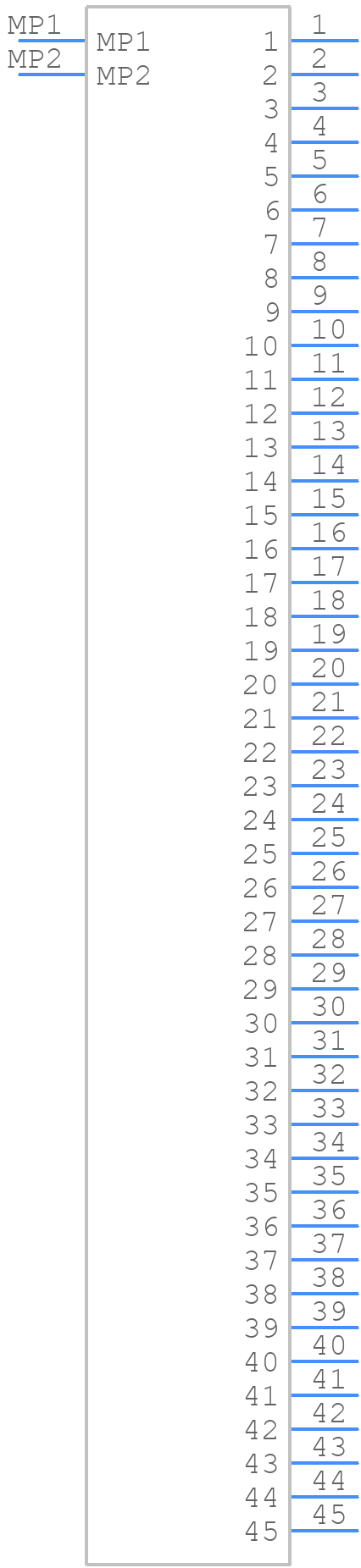

Use the download button to access the FH33-45S-0.5SH(99) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH33-,
or try a keyword search, such as Headers and Edge Type Connectors
