FH34D-14S-0.5SH(50) footprint, schematic symbol and 3D model by Hirose

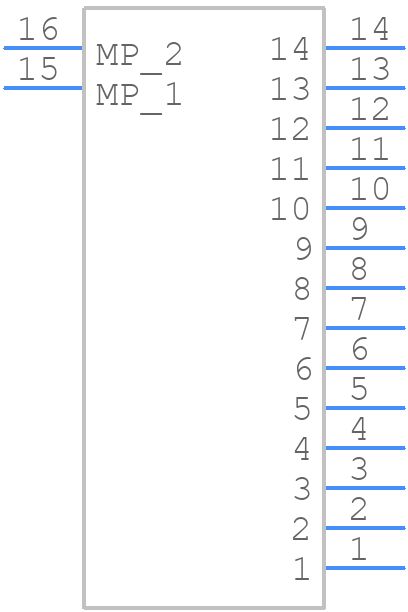

Symbol

click to zoom

PCB Footprints

FH34D-14S-0.5SH(50) - Hirose PCB footprint - Other - Other - FH34D-14S-0.5SH(50)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH34D-14S-0.5SH(50)
Part Number FH34D-14S-0.5SH(50)
Manufacturer Hirose
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - FH34D-14S-0.5SH(50)-1
Released Date Jun 15, 2026
Last Modified Date Jun 15, 2026 2:43 PM UTC
Pinout / Pin List Click Here (Member Only)

FH34D-14S-0.5SH(50) Details

Manufacturer Part Number:
FH34D-14S-0.5SH(50)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Connector Type:
FFC/FPC CONNECTOR

FH34D-14S-0.5SH(50) Frequently Asked Questions (FAQs)

The recommended torque is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in) for the M2 screws.
Yes, the FH34D-14S-0.5SH(50) connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz.
The FH34D-14S-0.5SH(50) connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F). However, it's recommended to derate the current carrying capacity at higher temperatures.
The FH34D-14S-0.5SH(50) connector is rated for a minimum of 50 mating cycles.
Yes, the FH34D-14S-0.5SH(50) connector is designed for automated assembly and can be used with pick-and-place machines.

Trust Checks

Community Provided

System Verified

Community Approved

FH34D-14S-0.5SH(50) Overview

Use the download button to access the FH34D-14S-0.5SH(50) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FH34D, or try a keyword search, such as Headers and Edge Type Connectors
