FH34SJ-34S-0.5SH(50) - Hirose

Description: HIROSE(HRS) - FH34SJ-34S-0.5SH(50) - CONNECTOR, FFC/FPC, RCPT, 34POS, 1ROW

Download FH34SJ-34S-0.5SH(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

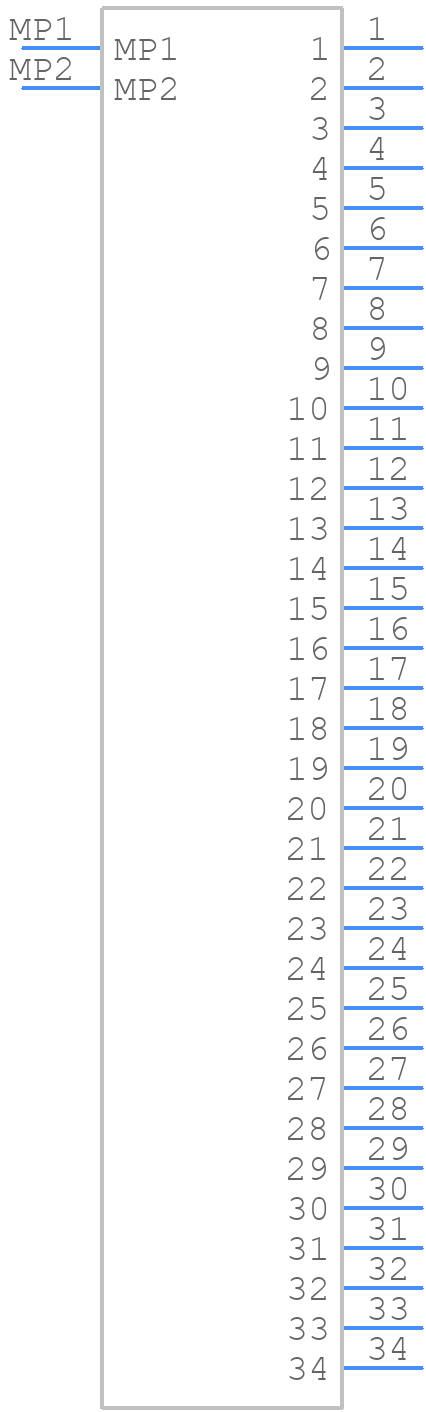

FH34SJ-34S-0.5SH(50) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH34SJ-34S-0.5SH(50) - Hirose PCB footprint - Other - Other - FH34SJ-34S-0.5SH(50)-2
click to zoom
3D Models
FH34SJ-34S-0.5SH(50) - Hirose - 3D model - Other - FH34SJ-34S-0.5SH(50)-2
click to zoom

FH34SJ-34S-0.5SH(50) Details

  • Manufacturer Part Number:

    FH34SJ-34S-0.5SH(50)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    LOCATING POSTS

  • Body Breadth:

    0.039 inch

  • Body Depth:

    0.125 inch

  • Body Length:

    0.748 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Color:

    BEIGE

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    2u inch

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.508 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    34

FH34SJ-34S-0.5SH(50) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the FH34SJ-34S-0.5SH(50) is designed to withstand vibrations and is suitable for use in harsh environments. However, it's recommended to consult the datasheet and perform thorough testing to ensure reliability.
  • The operating temperature range for the FH34SJ-34S-0.5SH(50) is -40°C to 105°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the FH34SJ-34S-0.5SH(50) is designed for high-speed signal transmission and is suitable for use in high-frequency applications up to 10 Gbps.
  • The recommended mating cycle for the FH34SJ-34S-0.5SH(50) is 500 cycles, but it's recommended to consult the datasheet for specific guidance on mating cycles and connector durability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH34SJ-34S-0.5SH(50) Overview

Use the download button to access the FH34SJ-34S-0.5SH(50) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH34S, or try a keyword search, such as Headers and Edge Type Connectors
