The recommended torque value for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose application notes.
Yes, the FH34SRJ-32S-0.5SH(50) is designed to withstand vibrations up to 10G (10-2000Hz) according to IEC 60512-11-1, making it suitable for high-vibration applications.
Yes, the FH34SRJ-32S-0.5SH(50) is designed for automated assembly and can be mounted using standard pick-and-place machines.
The FH34SRJ-32S-0.5SH(50) can operate in temperatures ranging from -40°C to 105°C, making it suitable for a wide range of applications.
The FH34SRJ-32S-0.5SH(50) has a IP67 rating, which means it can withstand immersion in water up to 1m for 30 minutes and is resistant to certain chemicals, but it's essential to consult the datasheet and application notes for specific environmental requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FH34SRJ-32S-0.5SH(50) Overview

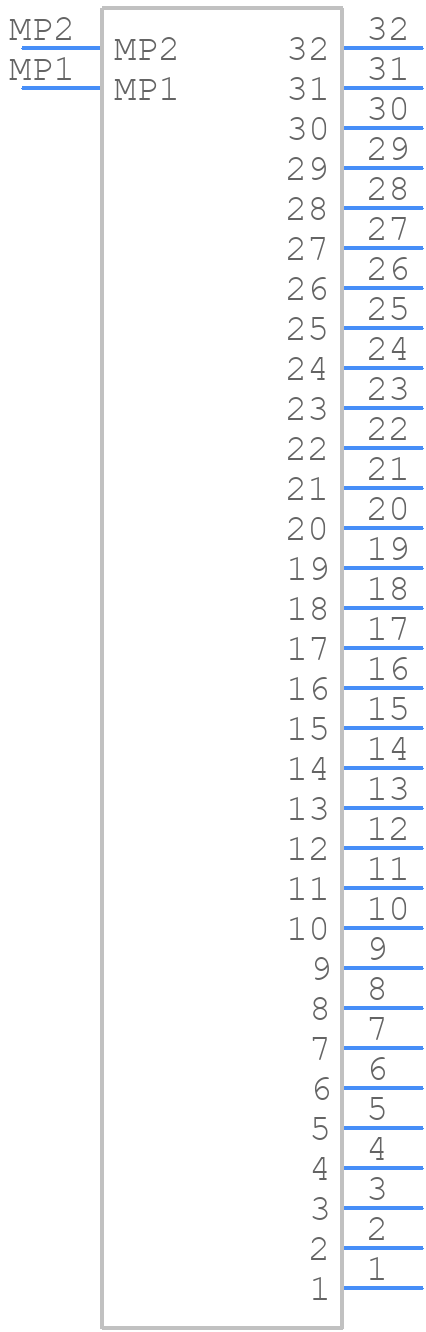

Use the download button to access the FH34SRJ-32S-0.5SH(50) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH34S,
or try a keyword search, such as Headers and Edge Type Connectors
