- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FH35C-23S-0.3SHW(50)
- Part Number FH35C-23S-0.3SHW(50)
- Manufacturer Hirose
- Pin Count 25
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH35C-23S-0.3SHW(50)-1
- Released Date Jan 30, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH35C-23S-0.3SHW(50) Details
-
Manufacturer Part Number:
FH35C-23S-0.3SHW(50)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
8
-
Connector Type:
FFC/FPC CONNECTOR
FH35C-23S-0.3SHW(50) Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 N·m to 1.5 N·m, but it's recommended to consult the Hirose Electric Co Ltd application notes for specific guidance.
-
Yes, the FH35C-23S-0.3SHW(50) connector is designed to withstand vibrations and is suitable for use in high-vibration applications, but it's recommended to consult with Hirose Electric Co Ltd for specific guidance on the vibration levels it can withstand.
-
The maximum operating temperature range for the FH35C-23S-0.3SHW(50) connector is -40°C to 105°C, but it's recommended to consult the datasheet for specific guidance on temperature derating.
-
Yes, the FH35C-23S-0.3SHW(50) connector is compatible with lead-free soldering processes, but it's recommended to consult with Hirose Electric Co Ltd for specific guidance on the recommended soldering profiles.
-
The recommended mating cycle for the FH35C-23S-0.3SHW(50) connector is 500 cycles, but it's recommended to consult with Hirose Electric Co Ltd for specific guidance on the mating cycle and connector durability.
Trust Checks
Expert Contribution
System Verified
Community Approved
FH35C-23S-0.3SHW(50) Overview

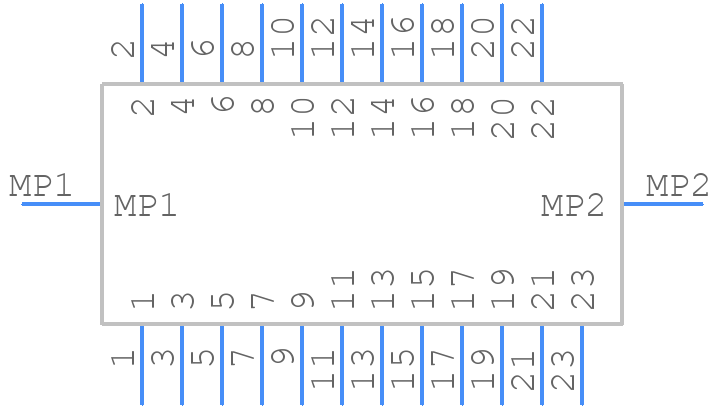

Use the download button to access the FH35C-23S-0.3SHW(50) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH35C,
or try a keyword search, such as Headers and Edge Type Connectors
