Part Image

FH35C-33S-0.3SHW(50) - Hirose

Description: FFC & FPC Connectors 33P BCKFLP DUAL-SIDE FPC 0.3mm P 0.9mm H

Download FH35C-33S-0.3SHW(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

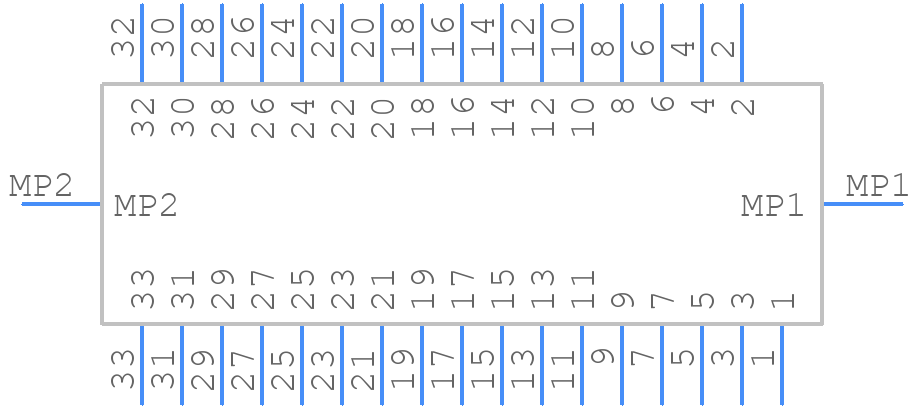

Symbol
FH35C-33S-0.3SHW(50) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH35C-33S-0.3SHW(50) - Hirose PCB footprint - Other - Other - FH35C-33S-0.3SHW(50)-2
click to zoom
3D Models
FH35C-33S-0.3SHW(50) - Hirose - 3D model - Other - FH35C-33S-0.3SHW(50)-2
click to zoom

FH35C-33S-0.3SHW(50) Details

  • Manufacturer Part Number:

    FH35C-33S-0.3SHW(50)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.58

  • Connector Type:

    FFC/FPC CONNECTOR

FH35C-33S-0.3SHW(50) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m, but it's recommended to consult the Hirose Electric Co Ltd application notes for specific guidance.
  • Yes, the FH35C-33S-0.3SHW(50) connector is designed to withstand vibrations and is suitable for use in high-vibration applications, but it's recommended to consult the datasheet and application notes for specific guidance.
  • The maximum operating temperature range for the FH35C-33S-0.3SHW(50) connector is -40°C to 105°C, but it's recommended to consult the datasheet for specific guidance.
  • Yes, the FH35C-33S-0.3SHW(50) connector is compatible with lead-free soldering processes, but it's recommended to consult the datasheet and application notes for specific guidance.
  • The recommended mating cycle for the FH35C-33S-0.3SHW(50) connector is 500 cycles, but it's recommended to consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH35C-33S-0.3SHW(50) Overview

Use the download button to access the FH35C-33S-0.3SHW(50) schematic symbol, PCB footprint, and 3D model.
