FH35C-9S-0.3SHW(50) footprint, schematic symbol and 3D model by Hirose

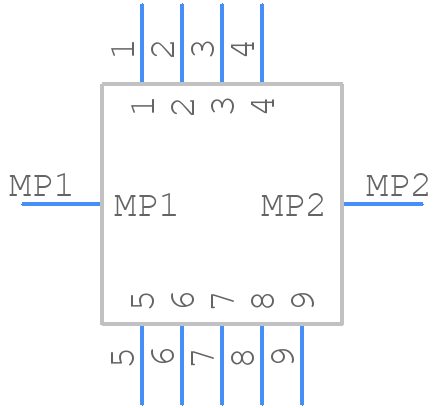

Symbol

click to zoom

PCB Footprints

FH35C-9S-0.3SHW(50) - Hirose PCB footprint - Other - Other - FH35C-9S-0.3SHW(50)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH35C-9S-0.3SHW(50)
Part Number FH35C-9S-0.3SHW(50)
Manufacturer Hirose
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - FH35C-9S-0.3SHW(50)-2
Released Date Jan 13, 2019
Last Modified Date Jul 22, 2025 12:17 PM UTC
Pinout / Pin List Click Here (Member Only)

FH35C-9S-0.3SHW(50) Details

Manufacturer Part Number:
FH35C-9S-0.3SHW(50)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
Connector Type:
FFC/FPC CONNECTOR

FH35C-9S-0.3SHW(50) Frequently Asked Questions (FAQs)

The recommended torque is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in) for the M2 screws.
Yes, the FH35C-9S-0.3SHW(50) connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2,000 Hz.
The FH35C-9S-0.3SHW(50) connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer for specific environmental requirements.
The FH35C-9S-0.3SHW(50) connector is rated for a minimum of 500 mating cycles.
Yes, the FH35C-9S-0.3SHW(50) connector is designed for automated assembly and can be used with various assembly machines and tools.

Trust Checks

Expert Contribution

System Verified

Community Approved

FH35C-9S-0.3SHW(50) Overview

Use the download button to access the FH35C-9S-0.3SHW(50) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FH35C, or try a keyword search, such as Headers and Edge Type Connectors
