FH36W-39S-0.3SHW(99) footprint, schematic symbol and 3D model by Hirose

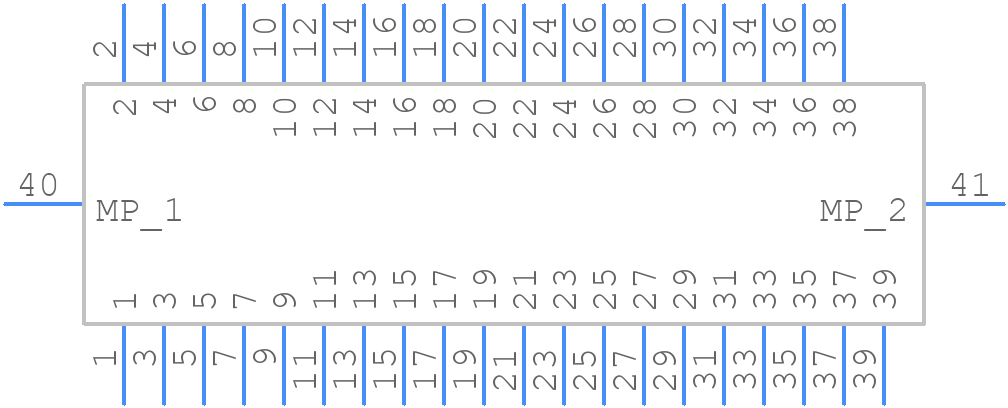

Symbol

click to zoom

PCB Footprints

FH36W-39S-0.3SHW(99) - Hirose PCB footprint - Other - Other - FH36W-39S-0.3SHW(99)-4

click to zoom

3D Models

FH36W-39S-0.3SHW(99) - Hirose - 3D model - Other - FH36W-39S-0.3SHW(99)-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH36W-39S-0.3SHW(99)
Part Number FH36W-39S-0.3SHW(99)
Manufacturer Hirose
Pin Count 41
Part Category Connector
Package Category Other
Footprint Name Other - FH36W-39S-0.3SHW(99)-4
Released Date Dec 2, 2018
Last Modified Date May 31, 2025 10:15 AM UTC
Pinout / Pin List Click Here (Member Only)

FH36W-39S-0.3SHW(99) Details

Manufacturer Part Number:
FH36W-39S-0.3SHW(99)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Body Breadth:
0.039 inch
Body Depth:
0.106 inch
Body Length:
0.524 inch
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
AU
Contact Finish Termination:
GOLD
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
120VAC V
Durability:
10 Cycles
Filter Feature:
NO
Insertion Force-Max:
ZIF N
Insulation Resistance:
50000000 Ω
Insulator Color:
BEIGE
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.012 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.3622 mm
Rated Current (Signal):
0.2 A
Reference Standard:
UL
Terminal Pitch:
0.6096 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
39

FH36W-39S-0.3SHW(99) Frequently Asked Questions (FAQs)

The recommended mating cycle for FH36W-39S-0.3SHW(99) connectors is 500 cycles, but it's essential to consult Hirose's application notes and testing conditions to ensure the connectors meet your specific requirements.
While FH36W-39S-0.3SHW(99) connectors are designed to be robust, they may not be suitable for extreme vibration environments. It's recommended to consult Hirose's vibration testing data and application notes to determine the connector's suitability for your specific application.
The maximum operating temperature for FH36W-39S-0.3SHW(99) connectors is 125°C, but it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
Yes, FH36W-39S-0.3SHW(99) connectors are compatible with lead-free soldering processes, but it's recommended to follow Hirose's recommended soldering profiles and guidelines to ensure reliable connections.
The typical lead time for FH36W-39S-0.3SHW(99) connectors can vary depending on the region, quantity, and availability. It's recommended to check with authorized distributors or Hirose's sales representatives for the most up-to-date lead time information.

Trust Checks

Community Provided

System Verified

Community Approved

FH36W-39S-0.3SHW(99) Overview

Use the download button to access the FH36W-39S-0.3SHW(99) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FH36W, or try a keyword search, such as Headers and Edge Type Connectors
