FH39-25S-0.3SHW(10) footprint, schematic symbol and 3D model by Hirose

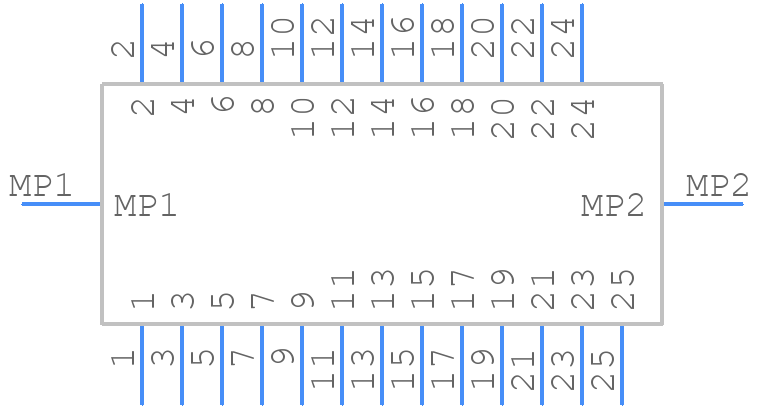

Symbol

click to zoom

PCB Footprints

FH39-25S-0.3SHW(10) - Hirose PCB footprint - Other - Other - FH39-25S-0.3SHW(10)-1

click to zoom

3D Models

FH39-25S-0.3SHW(10) - Hirose - 3D model - Other - FH39-25S-0.3SHW(10)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH39-25S-0.3SHW(10)
Part Number FH39-25S-0.3SHW(10)
Manufacturer Hirose
Pin Count 27
Part Category Connector
Package Category Other
Footprint Name Other - FH39-25S-0.3SHW(10)-1
Released Date Aug 11, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FH39-25S-0.3SHW(10) Details

Manufacturer Part Number:
FH39-25S-0.3SHW(10)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Additional Feature:
LOW PROFILE
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Pattern:
STAGGERED
Contact Resistance:
100 mΩ
Contact Style:
BELLOWED TYPE
DIN Conformance:
NO
Dielectric Withstanding Voltage:
120VAC V
Durability:
10 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
ZIF N
Insulation Resistance:
50000000 Ω
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.012 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
Rated Current (Signal):
0.2 A
Reference Standard:
UL
Terminal Pitch:
0.3 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
25
UL Flammability Code:
94V-0
Withdrawl Force-Min:
ZIF N

FH39-25S-0.3SHW(10) Frequently Asked Questions (FAQs)

The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
Yes, the FH39-25S-0.3SHW(10) connector is designed to withstand vibrations and is suitable for high-vibration applications, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing results.
The FH39-25S-0.3SHW(10) connector is designed to operate in a temperature range of -40°C to 105°C and can withstand humidity, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific environmental testing results.
The mating cycle life of the FH39-25S-0.3SHW(10) connector is typically 500 cycles, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle life information.
Yes, the FH39-25S-0.3SHW(10) connector is compatible with lead-free soldering processes, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific soldering process recommendations.

Trust Checks

Community Provided

System Verified

Community Approved

FH39-25S-0.3SHW(10) Overview

Use the download button to access the FH39-25S-0.3SHW(10) schematic symbol, PCB footprint, and 3D model.
