FH40-30S-0.5SV(99) footprint, schematic symbol and 3D model by Hirose

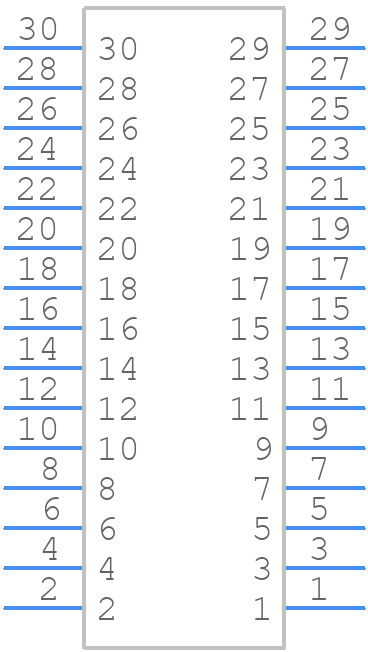

Symbol

click to zoom

PCB Footprints

FH40-30S-0.5SV(99) - Hirose PCB footprint - Other - Other - FH40-30S-0.5SV(99)-1

click to zoom

3D Models

FH40-30S-0.5SV(99) - Hirose - 3D model - Other - FH40-30S-0.5SV(99)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH40-30S-0.5SV(99)
Part Number FH40-30S-0.5SV(99)
Manufacturer Hirose
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - FH40-30S-0.5SV(99)-1
Released Date Jan 25, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FH40-30S-0.5SV(99) Details

Manufacturer Part Number:
FH40-30S-0.5SV(99)
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
6.86
Connector Type:
FFC/FPC CONNECTOR

Trust Checks

Expert Contribution

System Verified

Community Approved

FH40-30S-0.5SV(99) Overview

Use the download button to access the FH40-30S-0.5SV(99) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FH40-, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to FH40-30S-0.5SV(99)

Showing 0 results

Image	Part Number	Model
	FH40-30S-0.5SV Hirose Electric Co Ltd FFC/FPC Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking
For a full list of alternate parts for FH40-30S-0.5SV(99), check out Findchips.com
