FH41-15S-0.5SH(99) - Hirose

Description: Hirose, FH41, 41 0.5mm Pitch 15 Way Horizontal Female FPC Connector, Top Contact

Download FH41-15S-0.5SH(99) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

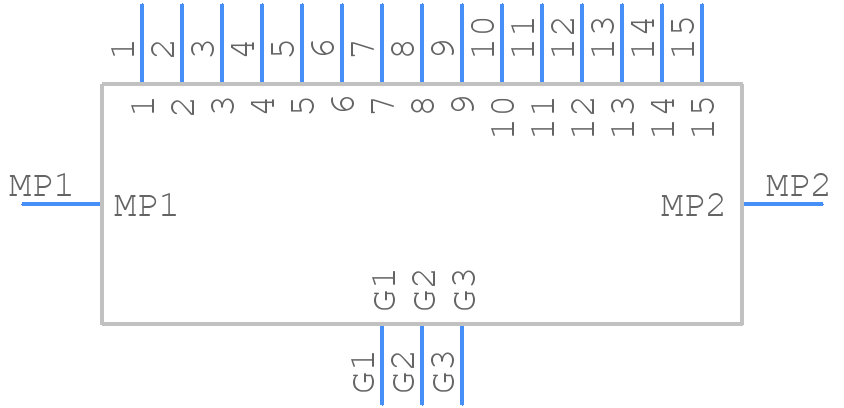

Symbol
FH41-15S-0.5SH(99) - Hirose - PCB symbol
click to zoom
PCB Footprints
FH41-15S-0.5SH(99) - Hirose PCB footprint - Other - Other - FH41-15S-0.5SH(99)-1
click to zoom
3D Models
FH41-15S-0.5SH(99) - Hirose - 3D model - Other - FH41-15S-0.5SH(99)-1
click to zoom

FH41-15S-0.5SH(99) Details

  • Manufacturer Part Number:

    FH41-15S-0.5SH(99)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

FH41-15S-0.5SH(99) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the FH41-15S-0.5SH(99) is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The FH41-15S-0.5SH(99) has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection or sealing measures for outdoor use to ensure reliability.
  • The FH41-15S-0.5SH(99) has an operating temperature range of -40°C to 105°C. It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The FH41-15S-0.5SH(99) is designed for use with AWG 20-24 wires. While it may be possible to use it with other wire gauges, it's essential to ensure that the wire gauge is compatible with the connector's specifications to prevent damage or connection issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FH41-15S-0.5SH(99) Overview

Use the download button to access the FH41-15S-0.5SH(99) schematic symbol, PCB footprint, and 3D model.
