The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure reliable connections and prevent damage to the terminals.
Yes, the FH41-30S-0.5SH(05) is designed to withstand vibrations and shocks. It meets the IEC 61373 Category 2 standard for vibration and shock resistance, making it suitable for use in high-vibration environments.
The operating temperature range for the FH41-30S-0.5SH(05) is -40°C to 105°C. It's essential to ensure the connector operates within this range to maintain its performance and reliability.
Yes, the FH41-30S-0.5SH(05) is designed to operate in harsh environments. It has a sealing rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes. Additionally, it's resistant to various chemicals, including oil, fuel, and cleaning agents.
The FH41-30S-0.5SH(05) has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles without compromising its performance or reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH41-30S-0.5SH(05) Overview

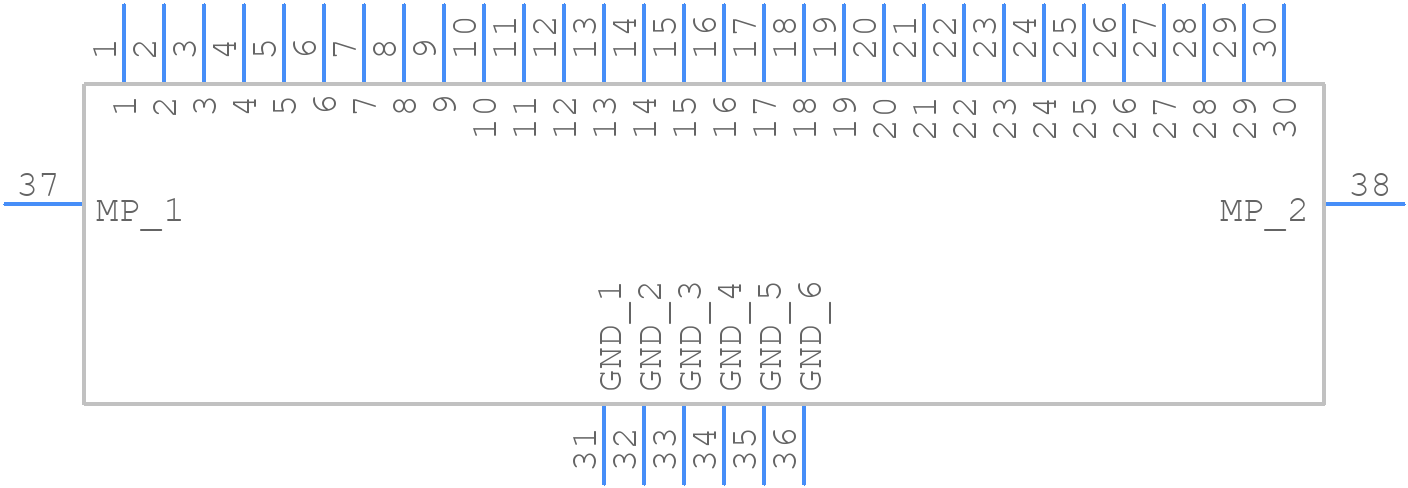

Use the download button to access the FH41-30S-0.5SH(05) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FH41-,
or try a keyword search, such as Headers and Edge Type Connectors
