The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the FH42-11S-0.3SHW(99) is designed to withstand vibrations up to 10 G (10-2000 Hz) according to IEC 60068-2-6. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The FH42-11S-0.3SHW(99) has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure the connector is properly sealed and protected from environmental factors such as UV, salt, and chemicals to maintain its performance and reliability.
The FH42-11S-0.3SHW(99) has an operating temperature range of -40°C to 105°C. It's crucial to ensure the connector is used within this temperature range to maintain its performance, reliability, and lifespan.
While the FH42-11S-0.3SHW(99) is designed for 0.3 mm² (AWG 22) wires, it's possible to use it with other wire sizes. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector is compatible with the wire size and gauge you plan to use.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FH42-11S-0.3SHW(99) Overview

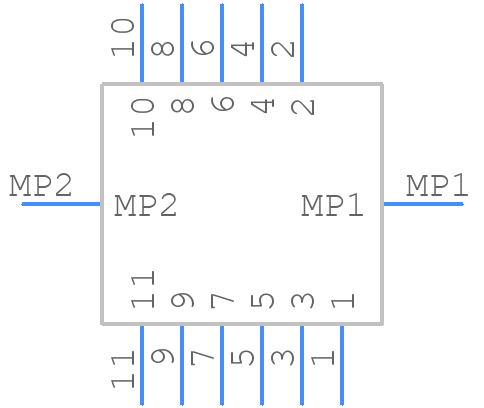

Use the download button to access the FH42-11S-0.3SHW(99) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH42-,
or try a keyword search, such as Headers and Edge Type Connectors
