The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the screws on the FH48-20S-0.5SV connector.
Yes, the FH48-20S-0.5SV connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
Yes, the FH48-20S-0.5SV connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
The FH48-20S-0.5SV connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the FH48-20S-0.5SV connector is designed for automated assembly and inspection systems, with features such as pick-and-place compatibility and visual inspection markers.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH48-20S-0.5SV Overview

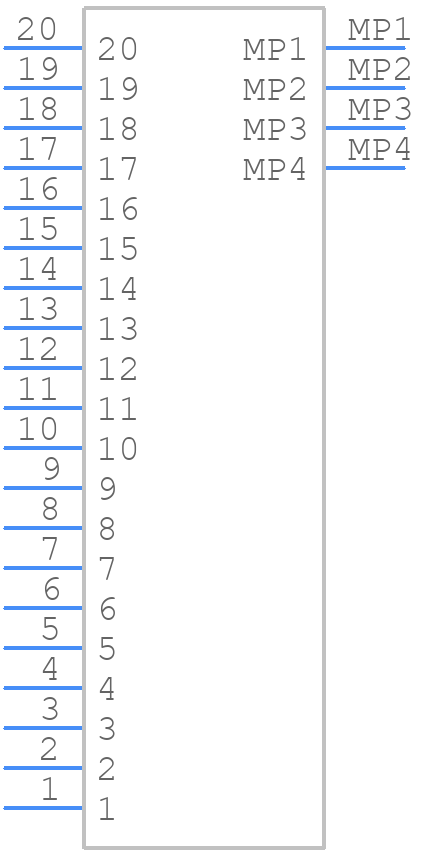

Use the download button to access the FH48-20S-0.5SV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH48-,
or try a keyword search, such as Headers and Edge Type Connectors
