FH48-30S-0.5SV - Hirose

Description: HIROSE(HRS) - FH48-30S-0.5SV - FFC / FPC Board Connector, 0.5 mm, 30 Contacts, Receptacle, FH48 Series, Surface Mount

Download FH48-30S-0.5SV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

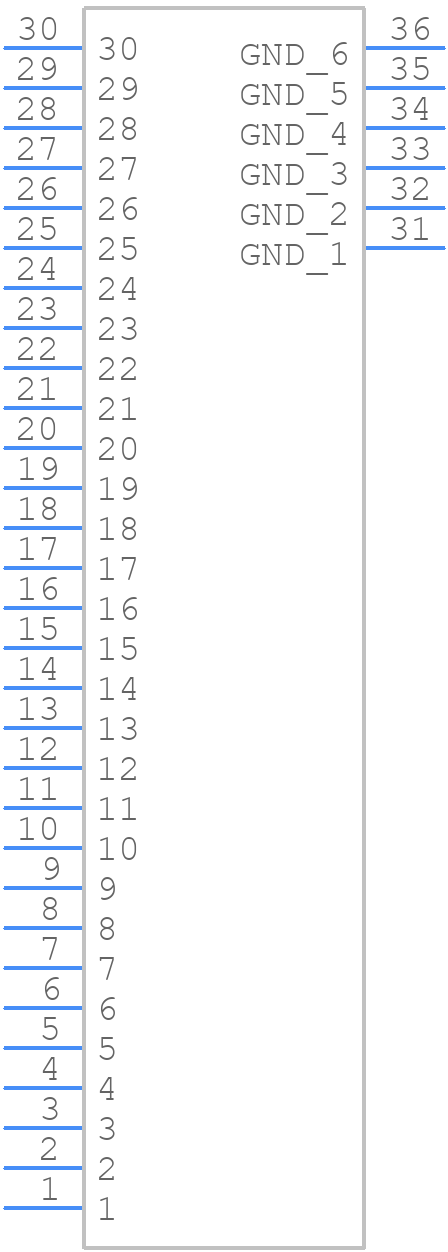

FH48-30S-0.5SV - Hirose - PCB symbol
click to zoom
PCB Footprints
FH48-30S-0.5SV - Hirose PCB footprint - Other - Other - FH48-30S-0.5SV-2
click to zoom
3D Models
FH48-30S-0.5SV - Hirose - 3D model - Other - FH48-30S-0.5SV-2
click to zoom

FH48-30S-0.5SV Details

  • Manufacturer Part Number:

    FH48-30S-0.5SV

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

FH48-30S-0.5SV Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the screws on the FH48-30S-0.5SV connector.
  • Yes, the FH48-30S-0.5SV connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial equipment.
  • Yes, the FH48-30S-0.5SV connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The FH48-30S-0.5SV connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the FH48-30S-0.5SV connector is designed for automated assembly and inspection systems, with a compact design and clear markings for easy identification and processing.
