FH52-28S-0.5SH footprint, schematic symbol and 3D model by Hirose

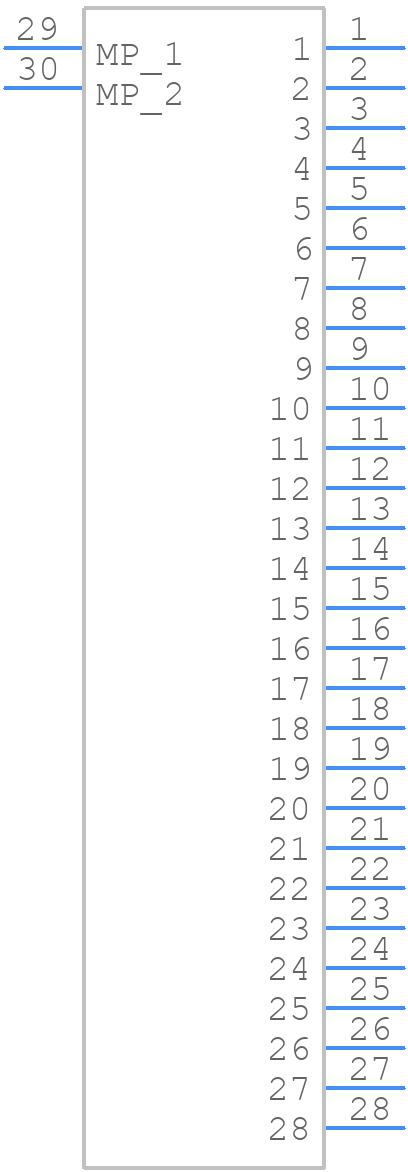

Symbol

click to zoom

PCB Footprints

FH52-28S-0.5SH - Hirose PCB footprint - Other - Other - FH52-28S-0.5SH-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FH52-28S-0.5SH
Part Number FH52-28S-0.5SH
Manufacturer Hirose
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - FH52-28S-0.5SH-1
Released Date Jan 31, 2018
Last Modified Date May 7, 2026 12:52 PM UTC
Pinout / Pin List Click Here (Member Only)

FH52-28S-0.5SH Details

Manufacturer Part Number:
FH52-28S-0.5SH
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
18 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Connector Type:
FFC/FPC CONNECTOR

FH52-28S-0.5SH Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of FH52-28S-0.5SH is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in).
Yes, FH52-28S-0.5SH is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2000 Hz, making it suitable for high-vibration applications.
Yes, FH52-28S-0.5SH is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less.
The maximum operating temperature range for FH52-28S-0.5SH is -40°C to 105°C (-40°F to 221°F).
FH52-28S-0.5SH has a moisture resistance rating of IP67, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for continuous use in humid or wet environments.

Trust Checks

Community Provided

System Verified

Community Approved

FH52-28S-0.5SH Overview

Use the download button to access the FH52-28S-0.5SH schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FH52-, or try a keyword search, such as Headers and Edge Type Connectors
