The recommended mating sequence for the FH52E-50(25)SA-1SH(99) connector is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
To ensure reliable connections in high-vibration environments, it's recommended to use a secondary locking mechanism, such as a screw or clip, to secure the connector in place. Additionally, applying a small amount of contact lubricant can help reduce fretting corrosion and improve connection reliability.
The maximum operating temperature for the FH52E-50(25)SA-1SH(99) connector is 125°C, as specified in the datasheet. However, it's essential to note that the connector's performance may degrade at higher temperatures, and it's recommended to derate the connector's current-carrying capacity accordingly.
The FH52E-50(25)SA-1SH(99) connector is designed to operate in a wide range of environmental conditions, including high humidity. However, it's recommended to apply a conformal coating or sealant to the connector to prevent moisture ingress and ensure reliable operation.
The recommended torque value for the screw locks on the FH52E-50(25)SA-1SH(99) connector is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to prevent damage to the connector or the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FH52E-50(25)SA-1SH(99) Overview

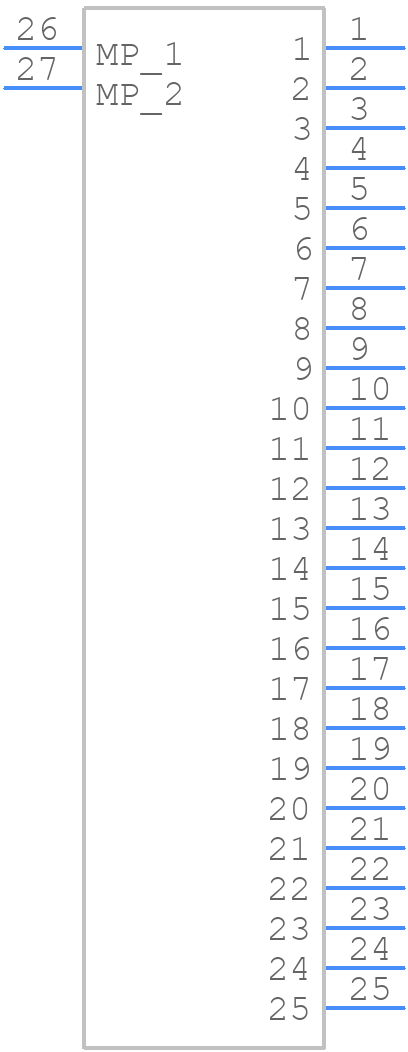

Use the download button to access the FH52E-50(25)SA-1SH(99) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH52E,
or try a keyword search, such as Headers and Edge Type Connectors
