- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FH63-10S-0.5SH
- Part Number FH63-10S-0.5SH
- Manufacturer Hirose
- Pin Count 15
- Part Category Connector
- Package Category Other
- Footprint Name Other - FH63-10S-0.5SH-2
- Released Date Nov 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FH63-10S-0.5SH Details
-
Manufacturer Part Number:
FH63-10S-0.5SH
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
0
-
Connector Type:
FFC/FPC CONNECTOR
FH63-10S-0.5SH Frequently Asked Questions (FAQs)
-
The recommended mating cycle for FH63-10S-0.5SH connectors is 500 cycles, as specified by Hirose Electric Co Ltd.
-
Yes, FH63-10S-0.5SH connectors are designed to withstand high-vibration environments, with a vibration resistance of 10G (10-2000Hz) according to IEC 60512-6.
-
Yes, FH63-10S-0.5SH connectors are designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.
-
The operating temperature range for FH63-10S-0.5SH connectors is -40°C to +105°C, making them suitable for a wide range of applications.
-
Yes, FH63-10S-0.5SH connectors are designed to withstand harsh environments, including high humidity and exposure to certain chemicals, but it's recommended to consult Hirose Electric Co Ltd for specific guidance on environmental resistance.
Trust Checks
Community Provided
System Verified
Community Approved
FH63-10S-0.5SH Overview

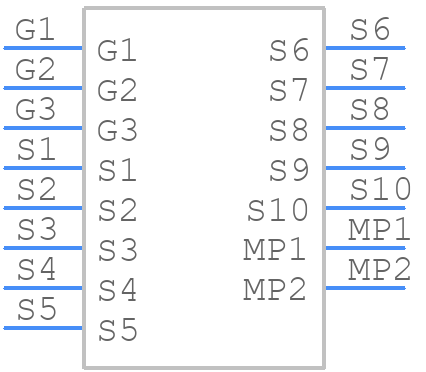

Use the download button to access the FH63-10S-0.5SH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FH63-,
or try a keyword search, such as Headers and Edge Type Connectors
