FH63S-10S-0.5SH - Hirose

Description: FFC & FPC Connectors 10 Position FFC FPC Connector

Download FH63S-10S-0.5SH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

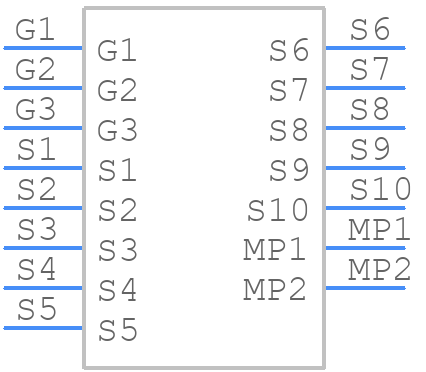

FH63S-10S-0.5SH - Hirose - PCB symbol
click to zoom
PCB Footprints
FH63S-10S-0.5SH - Hirose PCB footprint - Other - Other - FH63S-10S-0.5SH-5
click to zoom
3D Models
FH63S-10S-0.5SH - Hirose - 3D model - Other - FH63S-10S-0.5SH-5
click to zoom

FH63S-10S-0.5SH Details

  • Manufacturer Part Number:

    FH63S-10S-0.5SH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    3

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.11 inch

  • Body Depth:

    0.203 inch

  • Body Length:

    0.5 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    150VAC V

  • Durability:

    10 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    1u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

FH63S-10S-0.5SH Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.0 N·m. However, it's essential to consult the datasheet and follow the manufacturer's guidelines for specific applications.
  • Yes, the FH63S-10S-0.5SH connectors are designed to withstand vibrations and are suitable for use in high-vibration environments. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity.
  • The operating temperature range for FH63S-10S-0.5SH connectors is -40°C to 105°C. However, it's essential to consult the datasheet for specific temperature ratings and derating factors.
  • Yes, the FH63S-10S-0.5SH connectors are designed to support high-speed signals up to 10 Gbps. However, it's crucial to ensure proper termination, impedance matching, and signal integrity to maintain signal quality.
  • The FH63S-10S-0.5SH connectors have a IP67 rating, which means they are protected against dust and temporary immersion in water. However, it's essential to consult the datasheet and follow the manufacturer's guidelines for specific environmental conditions.
