The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the FHP-09-01-T-S connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
The operating temperature range for the FHP-09-01-T-S connector is -55°C to +125°C (-65°F to +257°F), making it suitable for a wide range of applications.
Yes, the FHP-09-01-T-S connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The recommended mating cycle for the FHP-09-01-T-S connector is 500 cycles, ensuring reliable connections and minimizing wear and tear on the connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FHP-09-01-T-S Overview

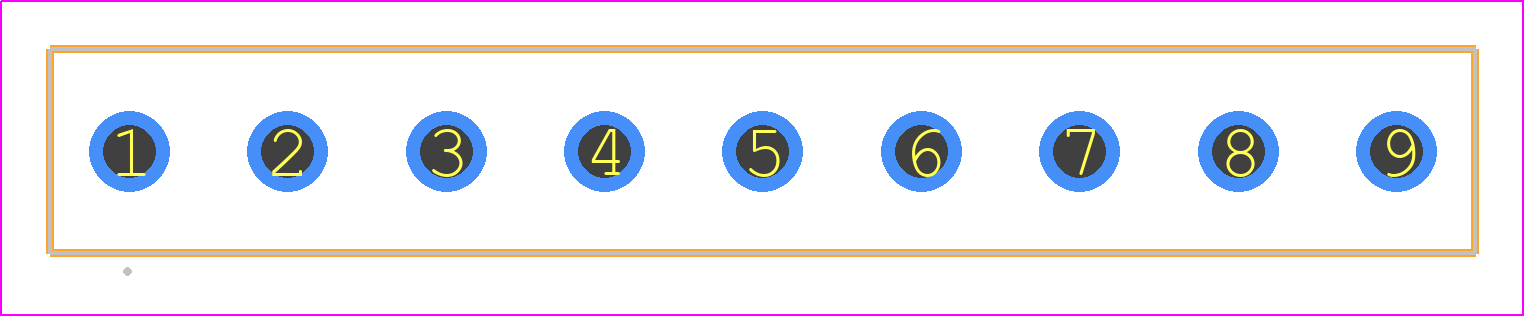

Use the download button to access the FHP-09-01-T-S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FHP-0,
or try a keyword search, such as Power Connectors
