FHP-12-01-T-S footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

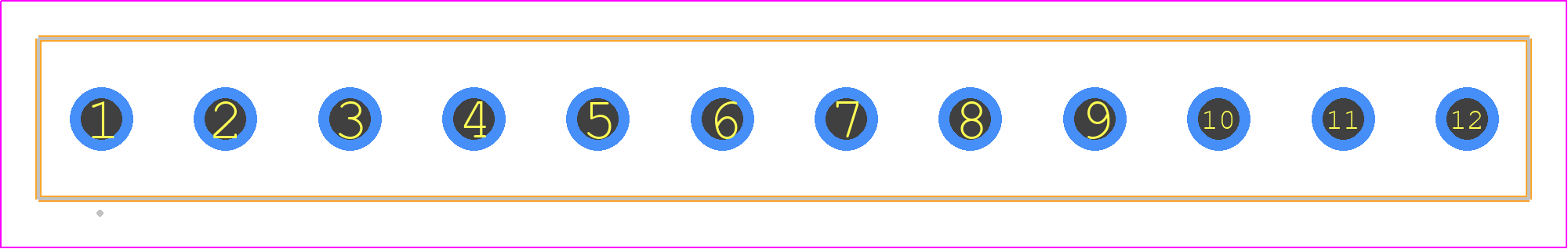

FHP-12-01-T-S - SAMTEC PCB footprint - Other - Other - FHP-12-01-X-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FHP-12-01-T-S
Part Number FHP-12-01-T-S
Manufacturer SAMTEC
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - FHP-12-01-X-S
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FHP-12-01-T-S Details

Manufacturer Part Number:
FHP-12-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
7
Body Breadth:
0.2 inch
Body Depth:
0.35 inch
Body Length:
2.2 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P12
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE
Reference Standard:
UL
Terminal Length:
0.102 inch
Termination Type:
SOLDER
Total Number of Contacts:
12

FHP-12-01-T-S Frequently Asked Questions (FAQs)

The recommended torque for the screws on the FHP-12-01-T-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FHP-12-01-T-S connector is designed to withstand vibration and shock according to IEC 61373 Cat 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
The maximum operating temperature for the FHP-12-01-T-S connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The FHP-12-01-T-S connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not recommended for use in wet or submerged environments without proper sealing or protection.
The recommended mating cycle for the FHP-12-01-T-S connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.
