FHP-15-01-T-S footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

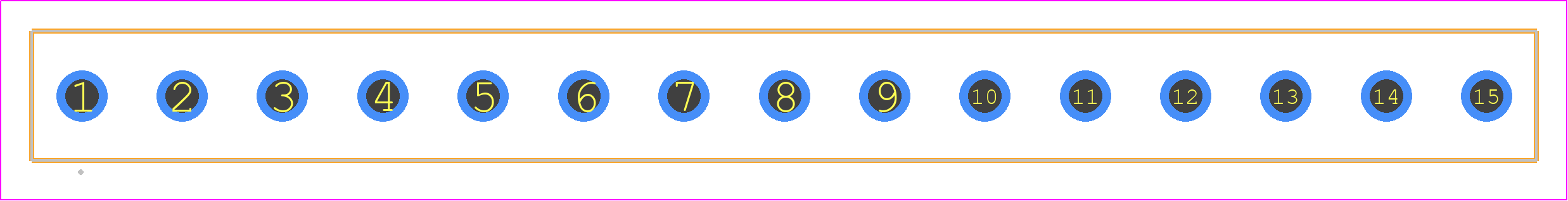

FHP-15-01-T-S - SAMTEC PCB footprint - Other - Other - FHP-15-01-X-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FHP-15-01-T-S
Part Number FHP-15-01-T-S
Manufacturer SAMTEC
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - FHP-15-01-X-S
Released Date Jul 22, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FHP-15-01-T-S Details

Manufacturer Part Number:
FHP-15-01-T-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Costa Rica, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
7
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
15

FHP-15-01-T-S Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the FHP-15-01-T-S connector is designed to withstand high-vibration environments. Samtec's FHP series connectors have undergone rigorous testing and meet the requirements of IEC 61373 Cat 1, Class B for vibration resistance.
The FHP-15-01-T-S connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the FHP-15-01-T-S connector is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
The FHP-15-01-T-S connector has a mating cycle life of 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating occur.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FHP-15-01-T-S Overview

Use the download button to access the FHP-15-01-T-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FHP-1, or try a keyword search, such as Power Connectors
