Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage. Additionally, a minimum input capacitance of 10uF is recommended to filter out noise and ensure stable operation.
The maximum allowed input voltage ripple for the FIAM1C21 is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
The FIAM1C21 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% per degree above 80°C to ensure reliable operation. Additionally, the module's thermal management should be designed to keep the junction temperature below 125°C.
To troubleshoot common issues, Vicor recommends checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the specified range, and the output load is within the recommended range. Also, check for any signs of overheating, and verify that the PCB layout meets Vicor's recommendations. If issues persist, contact Vicor's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FIAM1C21 Overview

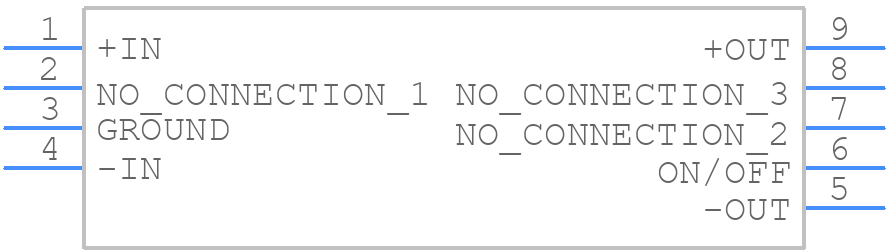

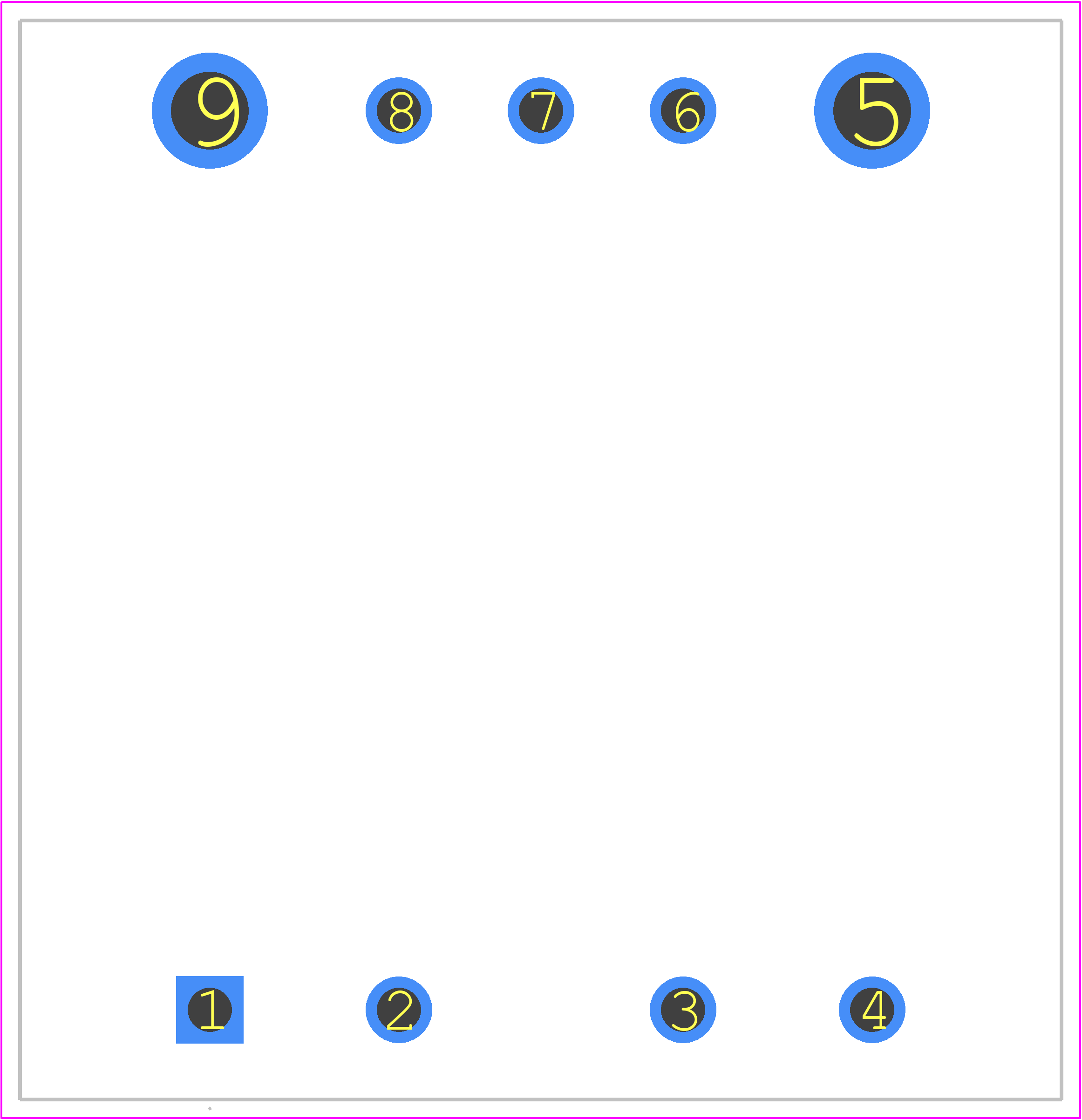

Use the download button to access the FIAM1C21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FIAM1,
or try a keyword search, such as Other Signal Circuits
