FK26X7R2J223KN000 - TDK

Description: MLCC with Dipped Radial Lead, Capacitance=22nF, LxWxT:5.5x6x3.5mm, Lead pitch:5mm

Download FK26X7R2J223KN000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FK26X7R2J223KN000 - TDK - PCB symbol
click to zoom
PCB Footprints

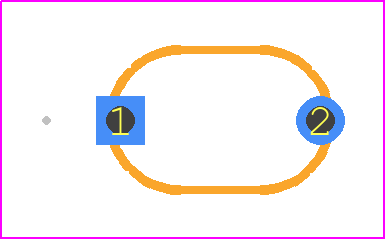

FK26X7R2J223KN000 - TDK PCB footprint - Other - Other - FK26
click to zoom
3D Models
FK26X7R2J223KN000 - TDK - 3D model - Other - FK26
click to zoom

FK26X7R2J223KN000 Details

  • Manufacturer Part Number:

    FK26X7R2J223KN000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.23.00.60

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Capacitance:

    0.022 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    6 mm

  • JESD-609 Code:

    e3

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Size Code:

    2214

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.5 mm
