The recommended land pattern for the FK28X7R1H222KN000 capacitor can be found in the TDK Corporation's Capacitor Land Pattern Guidelines document, which provides detailed information on pad layout and spacing for optimal performance and reliability.
The FK28X7R1H222KN000 capacitor is designed for high-frequency applications and exhibits low equivalent series resistance (ESR) and equivalent series inductance (ESL), making it suitable for use in high-speed circuits. However, it's essential to consult the impedance vs. frequency graph in the datasheet to ensure the capacitor meets the specific requirements of your application.
The FK28X7R1H222KN000 capacitor meets the requirements of the AEC-Q200 standard, which makes it suitable for use in automotive applications. However, it's essential to verify the capacitor's compliance with the specific requirements of your automotive project, including temperature range, vibration, and other environmental factors.
The FK28X7R1H222KN000 capacitor has an MSL rating of 2a, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering. However, it's recommended to follow the recommended storage and handling procedures to prevent moisture absorption.
The FK28X7R1H222KN000 capacitor has a maximum operating temperature of 125°C, making it suitable for use in high-temperature applications. However, it's essential to consider the capacitor's derating curve and ensure that the application's operating conditions do not exceed the recommended temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FK28X7R1H222KN000 Overview

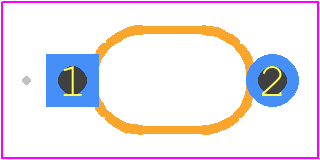

Use the download button to access the FK28X7R1H222KN000 schematic symbol, PCB footprint, and 3D model.
