FKP1T033307I00KSSD - WIMA

Description: Film Capacitors FKP 1 0.33 F 1600 VDC 31x46x41.5 RM37.5

Download FKP1T033307I00KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FKP1T033307I00KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

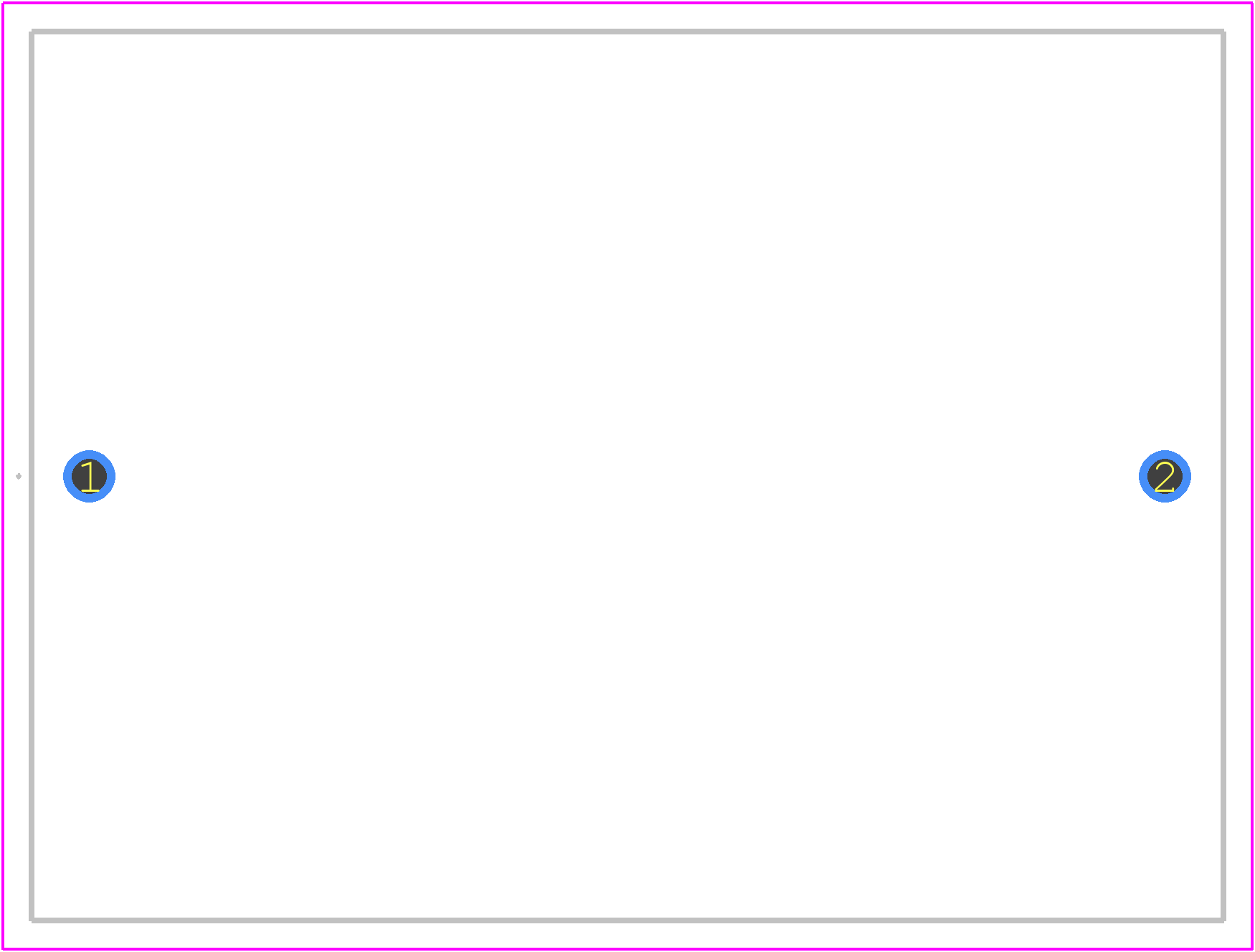

FKP1T033307I00KSSD - WIMA PCB footprint - Other - Other - FKP1T033307I00KSSD-2
click to zoom
3D Models
FKP1T033307I00KSSD - WIMA - 3D model - Other - FKP1T033307I00KSSD-2
click to zoom

FKP1T033307I00KSSD Details

  • Manufacturer Part Number:

    FKP1T033307I00KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.87

  • Capacitance:

    0.33 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    46 mm

  • JESD-609 Code:

    e3

  • Length:

    41.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    650 V

  • Rated (DC) Voltage (URdc):

    1600 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    37.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    31 mm

FKP1T033307I00KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the FKP1T033307I00KSSD is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, the FKP1T033307I00KSSD is designed for high-frequency applications up to 100 kHz, making it suitable for use in switching power supplies, DC-DC converters, and other high-frequency circuits.
  • The FKP1T033307I00KSSD has a maximum operating temperature range of -40°C to +105°C, making it suitable for use in a wide range of applications.
  • Yes, the FKP1T033307I00KSSD is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage temperature range for the FKP1T033307I00KSSD is between -20°C to +40°C, with a relative humidity of 60% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FKP1T033307I00KSSD Overview

Use the download button to access the FKP1T033307I00KSSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FKP1T, or try a keyword search, such as Ceramic Capacitors
