FKP1Y031007J00KSSD - WIMA

Description: CAP, 0.1UF, 6KV, FILM, RADIAL ROHS COMPLIANT: YES

Download FKP1Y031007J00KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FKP1Y031007J00KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

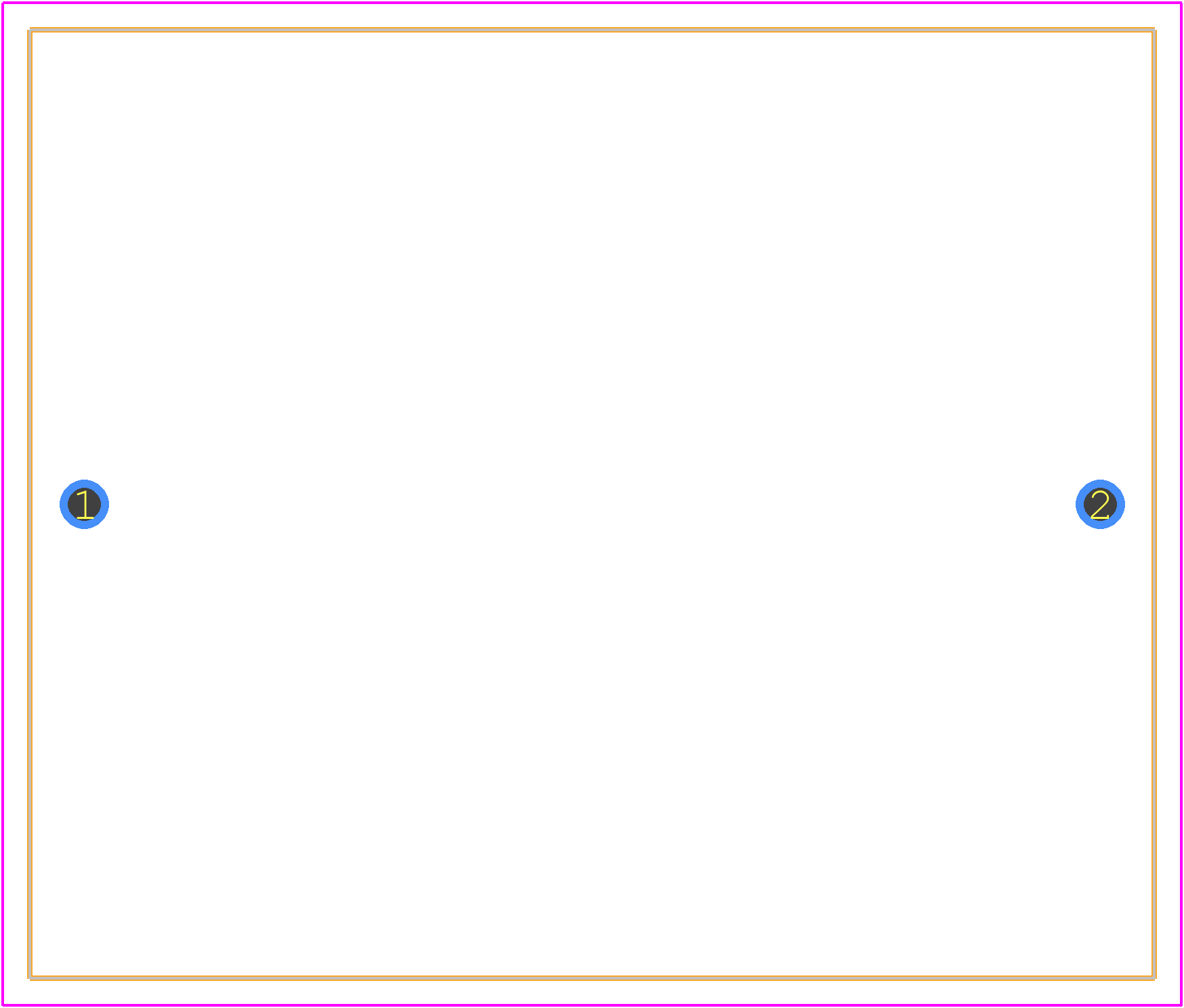

FKP1Y031007J00KSSD - WIMA PCB footprint - Other - Other - FKP1Y031007J00KSSD-2
click to zoom
3D Models
FKP1Y031007J00KSSD - WIMA - 3D model - Other - FKP1Y031007J00KSSD-2
click to zoom

FKP1Y031007J00KSSD Details

  • Manufacturer Part Number:

    FKP1Y031007J00KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.87

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    50 mm

  • JESD-609 Code:

    e3

  • Length:

    41.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    700 V

  • Rated (DC) Voltage (URdc):

    6000 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    37.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

FKP1Y031007J00KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for FKP1Y031007J00KSSD is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, FKP1Y031007J00KSSD is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, FKP1Y031007J00KSSD can operate in high-temperature environments up to 125°C, but its capacitance value may decrease with increasing temperature.
  • Yes, FKP1Y031007J00KSSD is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • FKP1Y031007J00KSSD should be stored in a dry, cool place with a relative humidity of 60% or less, and at a temperature between 10°C to 30°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FKP1Y031007J00KSSD Overview

Use the download button to access the FKP1Y031007J00KSSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FKP1Y, or try a keyword search, such as Ceramic Capacitors
