FKP1Y032209HD4MSSD - WIMA

Description: Film Capacitors FKP 1 0.22 F 6000 VDC 45x55x57 RM52.5

Download FKP1Y032209HD4MSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FKP1Y032209HD4MSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

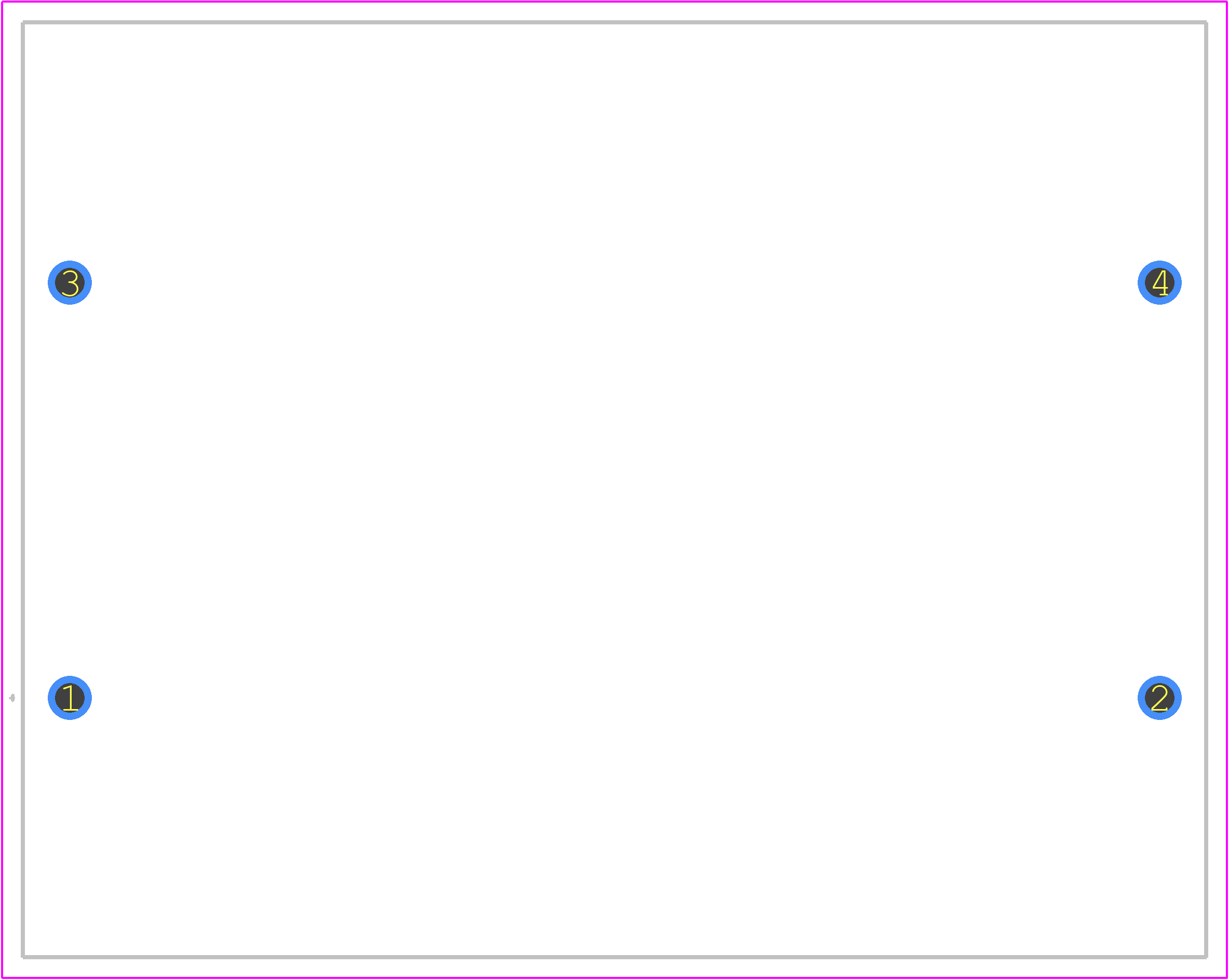

FKP1Y032209HD4MSSD - WIMA PCB footprint - Other - Other - FKP1Y032209HD4MSSD-3-
click to zoom
3D Models
FKP1Y032209HD4MSSD - WIMA - 3D model - Other - FKP1Y032209HD4MSSD-3-
click to zoom

FKP1Y032209HD4MSSD Details

  • Manufacturer Part Number:

    FKP1Y032209HD4MSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.87

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    55 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Positive Tolerance:

    20%

  • Rated (AC) Voltage (URac):

    700 V

  • Rated (DC) Voltage (URdc):

    6000 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

FKP1Y032209HD4MSSD Frequently Asked Questions (FAQs)

  • Wima recommends a soldering temperature of 260°C (500°F) with a maximum soldering time of 5 seconds. However, it's essential to follow the specific soldering guidelines provided by Wima or consult with their technical support team for more information.
  • Yes, FKP1Y032209HD4MSSD is designed to withstand high-vibration environments. Wima's FKP series is known for its excellent vibration resistance, making it suitable for applications in industrial, automotive, and aerospace industries.
  • Yes, FKP1Y032209HD4MSSD is compatible with lead-free soldering processes. Wima's FKP series is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use with lead-free soldering alloys.
  • The maximum operating temperature range for FKP1Y032209HD4MSSD is -40°C to +125°C (-40°F to +257°F). However, it's essential to note that the capacitor's performance and lifespan may be affected by extreme temperatures, so it's crucial to consult the datasheet and Wima's technical support team for more information.
  • FKP1Y032209HD4MSSD is designed to operate in humid or moist environments. Wima's FKP series has a moisture resistance classification of 'M' according to IEC 60384-14, which means it can withstand humid environments with a relative humidity of up to 90% at 40°C (104°F).
