A good PCB layout for the FL2500075 should ensure that the input and output capacitors are placed close to the device, and the power traces are wide and short to minimize inductance. Additionally, a solid ground plane and proper decoupling can help reduce noise and improve stability.
The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should also have a low ESR and be rated for the output voltage. A ceramic or electrolytic capacitor can be used, depending on the specific application requirements.
The FL2500075 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range may vary depending on the specific application and thermal design. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Yes, the FL2500075 is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process to ensure high reliability and low defect rates.
To troubleshoot issues with the FL2500075, start by checking the input voltage, output load, and PCB layout. Ensure that the device is properly decoupled, and the input and output capacitors are suitable for the application. Check for signs of overheating, such as excessive current draw or high junction temperature. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FL2500075 Overview

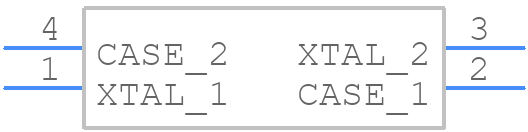

Use the download button to access the FL2500075 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FL250,
or try a keyword search, such as Quartz Crystals
