FL2810-1LD - COILCRAFT

Description: CCFL Transformers −40°C to +85°C 1500 Vrms 4.5W 35µH mA7.0

Download FL2810-1LD Model

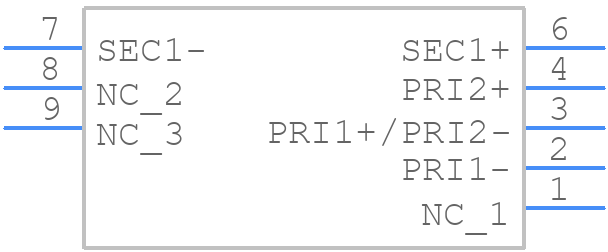

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FL2810-1LD - COILCRAFT PCB footprint - Other - Other - FL2810-1LD-2
click to zoom

FL2810-1LD Details

  • Manufacturer Part Number:

    FL2810-1LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.78

  • Additional Feature:

    LENGTH AND HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    5.21 mm

  • Input Voltage-Max:

    15 V

  • Length:

    27.95 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    100 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    1500 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    4.5 W

  • Primary Inductance:

    35 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    10.21 mm
