FL3200037 - Diodes Incorporated

Description: Crystals 32.000MHz 8pF 15ppm -20 to +70

Download FL3200037 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

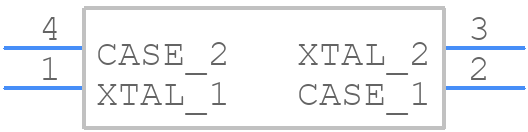

FL3200037 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
FL3200037 - Diodes Incorporated PCB footprint - Other - Other - FL2500133
click to zoom

FL3200037 Details

  • Manufacturer Part Number:

    FL3200037

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.60.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    AT-CUT; TR, 7 INCH

  • Aging:

    3 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    10 µW

  • Frequency Stability:

    0.0015%

  • Frequency Tolerance (MHz):

    15

  • JESD-609 Code:

    e4

  • Load Capacitance:

    8 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    32 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L3.2XB2.5XH0.65 (mm)/L0.126XB0.098XH0.026 (inch)

  • Series Resistance:

    50 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

FL3200037 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the FL3200037 is 2.7V to 5.5V.
  • To ensure proper power-on and power-off, it's recommended to follow a soft-start sequence, gradually increasing the input voltage to the recommended operating range.
  • The maximum current rating for the FL3200037 is 3A, but it's recommended to operate within the recommended operating current range of 1A to 2A for optimal performance and reliability.
  • To ensure proper thermal management, it's recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to operate the device within the recommended temperature range of -40°C to 125°C.
  • The FL3200037 has human body model (HBM) ESD protection of ±2kV and latch-up immunity of 100mA.
