FL3209-5LD - COILCRAFT

Description: SMPS Transformer, 3.5W 16V SURFACE MOUNT 100 kHz 3.5W 48uH -40Cel to 85Cel

Download FL3209-5LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

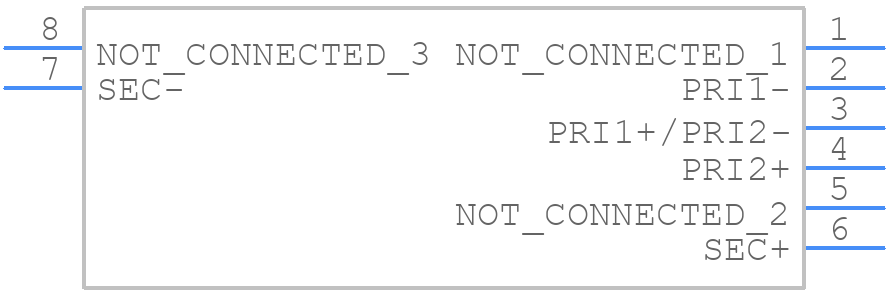

Symbol
FL3209-5LD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
FL3209-5LD - COILCRAFT PCB footprint - Other - Other - FL3209-5LD-4
click to zoom
3D Models
FL3209-5LD - COILCRAFT - 3D model - Other - FL3209-5LD-4
click to zoom

FL3209-5LD Details

  • Manufacturer Part Number:

    FL3209-5LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.78

  • Additional Feature:

    LENGTH AND HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    5.72 mm

  • Input Voltage-Max:

    16 V

  • JESD-609 Code:

    e2

  • Length:

    29.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    100 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    1600 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    3.5 W

  • Primary Inductance:

    48 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    9.3 mm

FL3209-5LD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a pad size of 3.3 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape. The recommended land pattern is available on Coilcraft's website.
  • The FL3209-5LD is rated for operation up to 125°C, but derating is required above 80°C. Coilcraft provides a temperature derating curve in the datasheet to help designers determine the inductor's performance at elevated temperatures.
  • The FL3209-5LD has a shielded construction, which helps reduce electromagnetic interference (EMI). To maintain the shielding effectiveness, ensure that the inductor is placed on a solid ground plane and that the shield is connected to ground.
  • The SRF of the FL3209-5LD is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Coilcraft provides an SRF calculator on their website to help designers determine the SRF of their inductors.
  • The FL3209-5LD has a maximum current rating of 5.4 A, but the actual current handling capability depends on the operating frequency, temperature, and other factors. Coilcraft provides a current derating curve in the datasheet to help designers determine the inductor's performance at high currents.
