FL3209-6LD - COILCRAFT

Description: CCFL Transformers , operating frequencies up to 100 kHz, With output power from 3.5 to 6.0 Watts,

Download FL3209-6LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

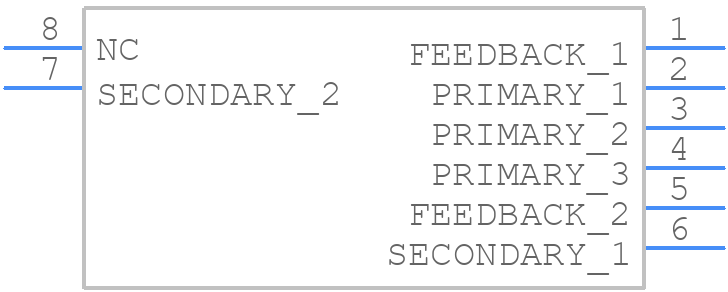

Symbol
FL3209-6LD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
FL3209-6LD - COILCRAFT PCB footprint - Other - Other - FL3209-6LD-2
click to zoom
3D Models
FL3209-6LD - COILCRAFT - 3D model - Other - FL3209-6LD-2
click to zoom

FL3209-6LD Details

  • Manufacturer Part Number:

    FL3209-6LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.78

  • Additional Feature:

    LENGTH AND HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    5.72 mm

  • Input Voltage-Max:

    17 V

  • JESD-609 Code:

    e2

  • Length:

    29.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    100 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    1600 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    3.5 W

  • Primary Inductance:

    40 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    9.3 mm

FL3209-6LD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a pad size of 3.3 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape. The recommended land pattern is available on Coilcraft's website.
  • The FL3209-6LD is rated for operation up to 125°C, but derating is required above 85°C. Consult Coilcraft's temperature derating chart to ensure the inductor meets your application's temperature requirements.
  • The FL3209-6LD has a shielded construction, which reduces magnetic radiation. However, it's still important to follow proper PCB layout and shielding techniques to minimize electromagnetic interference (EMI).
  • The SRF of the FL3209-6LD is not explicitly stated in the datasheet, but it can be estimated using Coilcraft's online inductor simulation tool or by contacting Coilcraft's technical support.
  • The FL3209-6LD has a maximum current rating of 6.3 A, but it's essential to consider the inductor's temperature rise, DC resistance, and saturation characteristics when designing for high-current applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FL3209-6LD Overview

Use the download button to access the FL3209-6LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FL320, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
