FLC01-200B footprint, schematic symbol and 3D model by STMicroelectronics

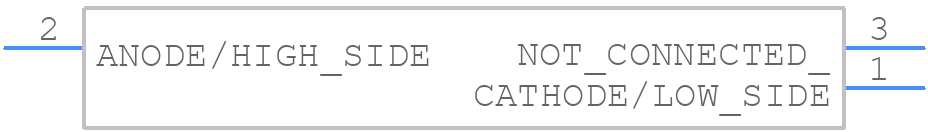

Symbol

click to zoom

PCB Footprints

FLC01-200B - STMicroelectronics PCB footprint - Other - Other - DPAK_2025-1.10

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FLC01-200B
Part Number FLC01-200B
Manufacturer STMicroelectronics
Pin Count 3
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - DPAK_2025-1.10
Released Date Dec 7, 2025
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

FLC01-200B Details

Manufacturer Part Number:
FLC01-200B
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
TO-252
Package Description:
DPAK-3
Pin Count:
3
ECCN Code:
EAR99
HTS Code:
8541.30.00.80
Manufacturer:
STMicroelectronics
YTEOL:
0
Additional Feature:
HIGH RELIABILITY
Breakover Voltage-Max:
233 V
Breakover Voltage-Min:
206 V
Configuration:
SINGLE WITH BUILT-IN DIODE AND RESISTOR
JESD-30 Code:
R-PSSO-G2
JESD-609 Code:
e3
Leakage Current-Max:
0.01 mA
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Repetitive Peak Off-state Voltage:
200 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Trigger Device Type:
SILICON SURGE PROTECTOR

FLC01-200B Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 10nF to 100nF. Refer to the application note AN2663 for more detailed guidance.
The maximum allowed voltage drop across the FLC01-200B is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may affect the device's performance and reliability.
The FLC01-200B is rated for operation up to 150°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal management and ensure proper heat dissipation to maintain optimal performance.
To ensure EMC, follow the guidelines in the application note AN2663, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using electromagnetic interference (EMI) filters and shielding components to minimize radiation and susceptibility.
